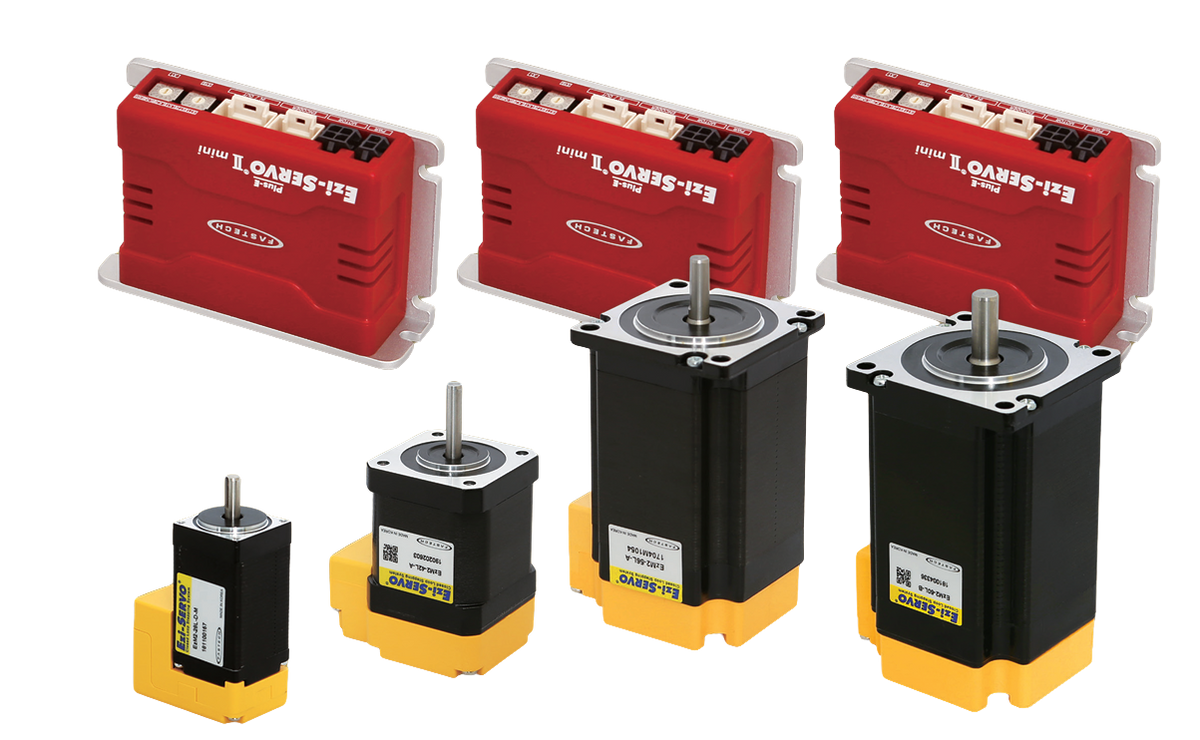

Compact closed-loop stepping system with Ethernet connectivity for precise positioning and automation tasks in confined installation spaces. A high-resolution encoder continuously monitors the current motor position and automatically corrects any positioning deviation, with position feedback evaluated every 50 µs. Its compact design makes the system particularly suitable for applications where space is limited, without giving up precise, dynamic motion.
Ethernet communication & position table
The connection is via Ethernet using 10BASE-T or 100BASE-TX. The built-in dual-port Ethernet switch lets drives simply be daisy-chained. Up to 254 axes can be operated over a single network. Up to 256 position points are also available, which can be stored for recurring motion sequences and triggered via digital inputs/outputs or a PC.
Choose a frame size to see matching products.
No in-stock configuration matches these values.
