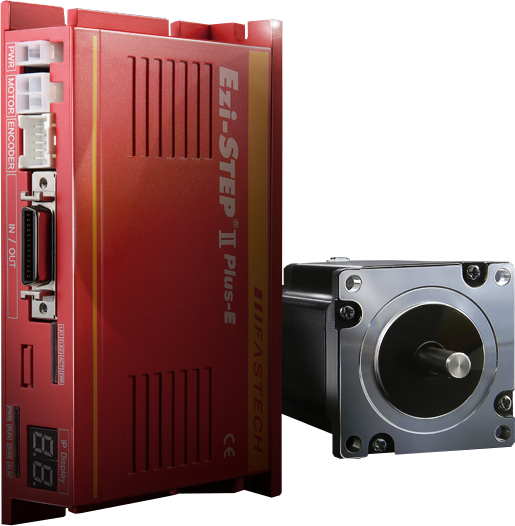

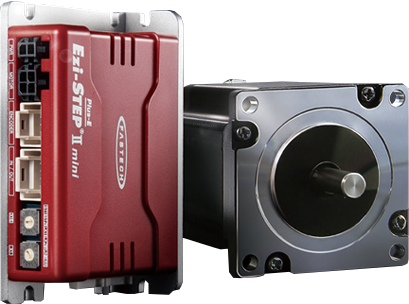

Microstepping system with Ethernet connectivity for precise, flexible positioning and automation tasks. A powerful 32-bit controller enables high-resolution microstep control with up to 50,000 steps per revolution. Fast PWM control at a 50 µs cycle together with built-in software damping reduces vibration and supports smooth motion at both low and high speeds.
Ethernet communication & position table
The connection is via Ethernet using 10BASE-T or 100BASE-TX. The built-in dual-port Ethernet switch lets multiple drives simply be daisy-chained. Up to 254 axes can be operated over a single network. Up to 256 position points are also available, which can be stored for recurring motion sequences and triggered via digital inputs/outputs or a PC.
