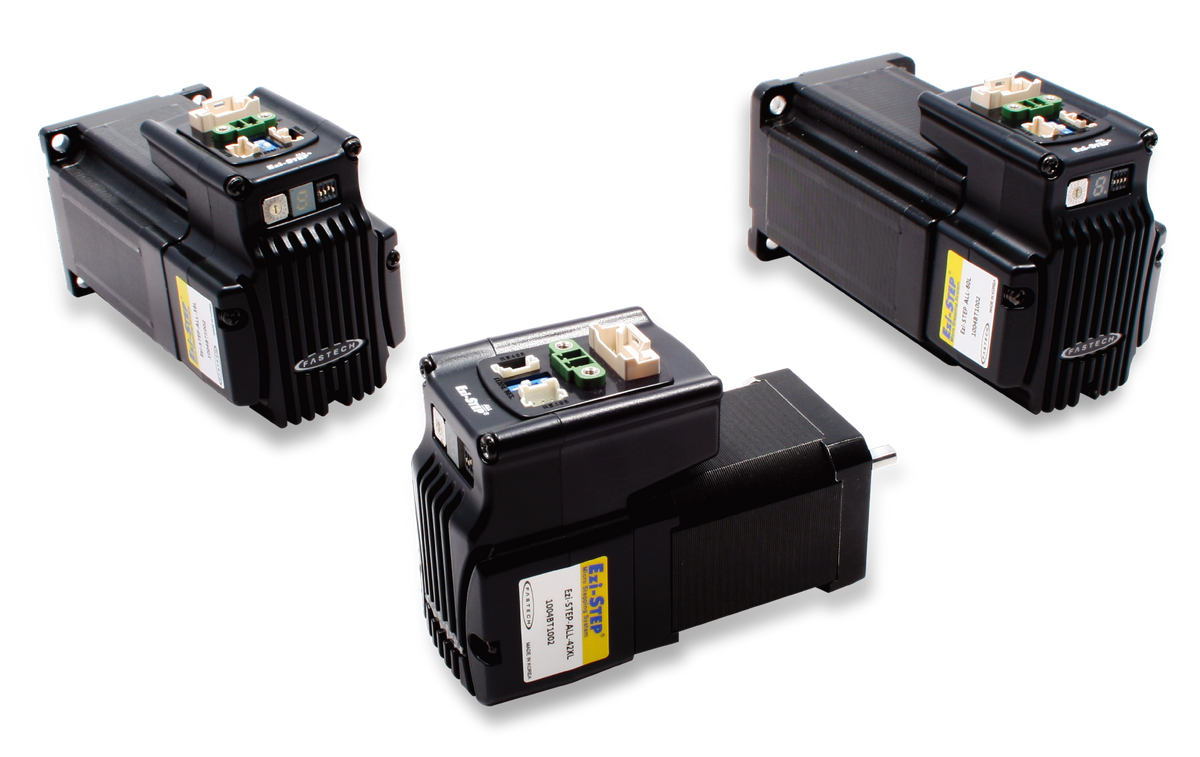

Compact microstepping system with integrated RS-485 communication for precise, space-saving positioning and automation tasks. Motor, drive, motion controller, and network interface are combined into a single unit, simplifying installation and reducing the required mounting space. A powerful 32-bit controller enables high-resolution microstep control with up to 50,000 steps per revolution. Built-in software damping reduces vibration and supports smooth motion at both low and high speeds.
RS-485 communication & position table
The connection is via RS-485 and supports operation of up to 16 axes within a network. Motion parameters and positioning commands are transmitted directly over the communication link. Up to 64 position points are also available, which can be stored for recurring motion sequences and triggered via digital inputs/outputs or a PC.
Choose a frame size to see matching products.
No in-stock configuration matches these values.
