Impuls Schrittmotorsystem
Schrittmotor mit integriertem Controller
A maximum of 16 axis can be operated from a PC through RS-485 communications. All of the Motion conditions are set through the network and saved in Flash ROM as a parameter. Motion Library(DLL) is provided for programming under Windows 7/8/10.
Closed-Loop Schrittmotorsystem
Ezi-SERVO is an innovative Closed Loop System that utilizes a high-resolution motor mounted encoder constantly to monitor the current position. The encoder feedback allows the Ezi-SERVO to update the current position every 25 micro seconds. It allows the Ezi-SERVO drive to compensate for the loss of position, ensuring accurate positioning. For example, due to a sudden load change, a conventional stepper motor and drive could lose a step but Ezi-SERVO automatically correct the position by encoder feedback.
Hochauflösend bis zu 20.000ppr
Position Table can be used for motion control by digital input and output signals of host controller. You can operate the motor directly by sending the position table number, start/stop, origin search and other digital input values from a PLC. The PLC can monitor the In-Position, origin search, moving/stop, Servo ready and other digital output signals from a drive. A maximum of 64 positioning points can be set from PLC.
¹ except Ezi-SERVO ALL 28 series

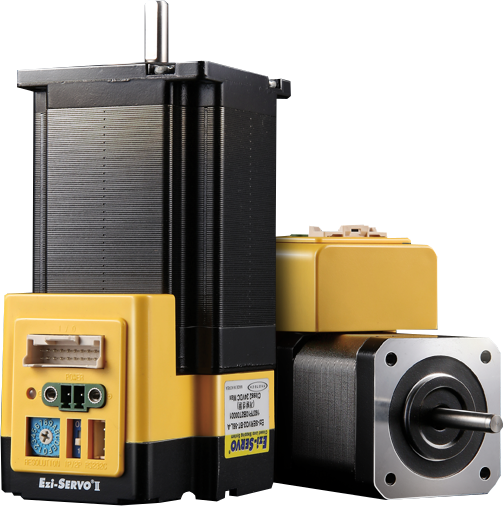

Ezi-SERVO II
Product Name
BT
Drive Series
42
Motor Flange Size
28: NEMA 1142: NEMA 17
56: NEMA 23
60: NEMA 24
S
Motor Length
S: SmallM: Medium
L: Large
XL: Extra Large
A
Encoder Resolution
A: 10.000 pprB: 20.000 ppr
D: 16.000 ppr
Produkte
Produkt
Lieferzeit
Einzelpreis
inkl. MwSt
inkl. MwSt
Ezi-SERVO II-BT-28L-D / NEMA 11 / large / 16,000ppr
Bis zu 2 Wochen
€447,44 EUR
Ezi-SERVO II-BT-28M-D / NEMA 11 / medium / 16,000ppr
Bis zu 2 Wochen
€435,54 EUR
Ezi-SERVO II-BT-28S-D / NEMA 11 / small / 16,000ppr
Bis zu 2 Wochen
€418,88 EUR
Ezi-SERVO II-BT-42L-A / NEMA 17 / large / 10,000ppr
Bis zu 2 Wochen
€383,18 EUR
Ezi-SERVO II-BT-42L-B / NEMA 17 / large / 20,000ppr
Bis zu 2 Wochen
€423,64 EUR
Ezi-SERVO II-BT-42M-A / NEMA 17 / medium / 10,000ppr
Bis zu 2 Wochen
€378,42 EUR
Ezi-SERVO II-BT-42M-B / NEMA 17 / medium / 20,000ppr
Bis zu 2 Wochen
€416,50 EUR
Ezi-SERVO II-BT-42S-A / NEMA 17 / small / 10,000ppr
Bis zu 2 Wochen
€376,04 EUR
Ezi-SERVO II-BT-42S-B / NEMA 17 / small / 20,000ppr
Bis zu 2 Wochen
€414,12 EUR
Ezi-SERVO II-BT-42XL-A / NEMA 17 / extra large / 10,000ppr
Bis zu 2 Wochen
€385,56 EUR
Ezi-SERVO II-BT-42XL-B / NEMA 17 / extra large / 20,000ppr
Bis zu 2 Wochen
€426,02 EUR
Ezi-SERVO II-BT-56L-A / NEMA 23 / large / 10,000ppr
Bis zu 2 Wochen
€406,98 EUR
Ezi-SERVO II-BT-56L-B / NEMA 23 / large / 20,000ppr
Bis zu 2 Wochen
€449,82 EUR
Ezi-SERVO II-BT-56M-A / NEMA 23 / medium / 10,000ppr
Bis zu 2 Wochen
€395,08 EUR
Ezi-SERVO II-BT-56M-B / NEMA 23 / medium / 20,000ppr
Bis zu 2 Wochen
€435,54 EUR
Ezi-SERVO II-BT-56S-A / NEMA 23 / small / 10,000ppr
Bis zu 2 Wochen
€387,94 EUR
Motorspezifikation
Einklappbarer Inhalt
Ezi-SERVO ALL 28 series
| Model | 28S | 28M | 28L |
|---|---|---|---|
| Drive Method | Bi-Polar | ||
| Number of Phases | 2 | ||
| Current per Phase | 0.95 A | ||
| Holding Torque | 0.069 N·m | 0.098 N·m | 0.118 N·m |
| Rotor Inertia | 9 g·cm² | 13 g·cm² | 18 g·cm² |
| Weight | 170 g | 227 g | 257 g |
| Length | 32 mm | 45 mm | 50 mm |
| Permissible Overhung Load (3mm) | 30 N | ||
| Permissible Overhung Load (8mm) | 38 N | ||
| Permissible Overhung Load (13mm) | 53 N | ||
| Permissible Overhung Load (18mm) | - | ||
| Permissible Thrust Load | Lower than motor weight | ||
| Insulation Resistance | 100 Min (at 500 VDC) | ||
| Insulation Class | Class B (130 °C) | ||
| Operating Temperature | 0 °C to 55 °C | ||
Ezi-SERVO ALL 42 series
| Model | 42S | 42M | 42L | 42XL |
|---|---|---|---|---|
| Drive Method | Bi-Polar | |||
| Number of Phases | 2 | |||
| Current per Phase | 1.2 A | |||
| Holding Torque | 0.32 N·m | 0.44 N·m | 0.5 N·m | 0.65 N·m |
| Rotor Inertia | 35 g·cm² | 54 g·cm² | 77 g·cm² | 114 g·cm² |
| Weight | 340 g | 400 g | 470 g | 600 g |
| Length | 34 mm | 40 mm | 48 mm | 60 mm |
| Permissible Overhung Load (3mm) | 22 N | |||
| Permissible Overhung Load (8mm) | 26 N | |||
| Permissible Overhung Load (13mm) | 33 N | |||
| Permissible Overhung Load (18mm) | 46 N | |||
| Permissible Thrust Load | Lower than motor weight | |||
| Insulation Resistance | 100 Min (at 500 VDC) | |||
| Insulation Class | Class B (130 °C) | |||
| Operating Temperature | 0 °C to 55 °C | |||
Ezi-SERVO ALL 56 series
| Model | 56S | 56M | 56L |
|---|---|---|---|
| Drive Method | Bi-Polar | ||
| Number of Phases | 2 | ||
| Current per Phase | 3.0 A | ||
| Holding Torque | 0.64 N·m | 1.0 N·m | 1.5 N·m |
| Rotor Inertia | 180 g·cm² | 280 g·cm² | 520 g·cm² |
| Weight | 640 g | 800 g | 1320 g |
| Length | 46 mm | 55 mm | 80 mm |
| Permissible Overhung Load (3mm) | 52 N | ||
| Permissible Overhung Load (8mm) | 65 N | ||
| Permissible Overhung Load (13mm) | 85 N | ||
| Permissible Overhung Load (18mm) | 123 N | ||
| Permissible Thrust Load | Lower than motor weight | ||
| Insulation Resistance | 100 Min (at 500 VDC) | ||
| Insulation Class | Class B (130 °C) | ||
| Operating Temperature | 0 °C to 55 °C | ||
Ezi-SERVO ALL 60 series
| Model | 60L |
|---|---|
| Drive Method | Bi-Polar |
| Number of Phases | 2 |
| Current per Phase | 4.0 A |
| Holding Torque | 2.4 N·m |
| Rotor Inertia | 690 g·cm² |
| Weight | 1800 g |
| Length | 47 mm |
| Permissible Overhung Load (3mm) | 70 N |
| Permissible Overhung Load (8mm) | 87 N |
| Permissible Overhung Load (13mm) | 114 N |
| Permissible Overhung Load (18mm) | 165 N |
| Permissible Thrust Load | Lower than motor weight |
| Insulation Resistance | 100 Min (at 500 VDC) |
| Insulation Class | Class B (130 °C) |
| Operating Temperature | 0 °C to 55 °C |
| Model | 28S | 28M | 28L | 42S | 42M | 42L | 42XL | 56S | 56M | 56L | 60L |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Drive Method | Bi-Polar | ||||||||||
| Number of Phases | 2 | ||||||||||
| Current per Phase | 0.95 A | 1.2 A | 3.0 A | 4.0 A | |||||||
| Holding Torque | 0.069 N·m | 0.098 N·m | 0.118 N·m | 0.32 N·m | 0.44 N·m | 0.5 N·m | 0.65 N·m | 0.64 N·m | 1.0 N·m | 1.5 N·m | 2.4 N·m |
| Rotor Inertia | 9 g·cm² | 13 g·cm² | 18 g·cm² | 35 g·cm² | 54 g·cm² | 77 g·cm² | 114 g·cm² | 180 g·cm² | 280 g·cm² | 520 g·cm² | 690 g·cm² |
| Weight | 170 g | 227 g | 257 g | 340 g | 400 g | 470 g | 600 g | 640 g | 800 g | 1320 g | 1800 g |
| Length | 32 mm | 45 mm | 50 mm | 34 mm | 40 mm | 48 mm | 60 mm | 46 mm | 55 mm | 80 mm | 47 mm |
| Permissible Overhung Load (3mm) | 30 N | 22 N | 52 N | 70 N | |||||||
| Permissible Overhung Load (8mm) | 38 N | 26 N | 65 N | 87 N | |||||||
| Permissible Overhung Load (13mm) | 53 N | 33 N | 85 N | 114 N | |||||||
| Permissible Overhung Load (18mm) | - | 46 N | 123 N | 165 N | |||||||
| Permissible Thrust Load | Lower than motor weight | ||||||||||
| Insulation Resistance | 100 Min (at 500 VDC) | ||||||||||
| Insulation Class | Class B (130 °C) | ||||||||||
| Operating Temperature | 0 °C to 55 °C | ||||||||||
Systemkonfiguration
-
Ezi-SERVO II BT 28 series
-
Ezi-SERVO II BT 42/56/60 series
