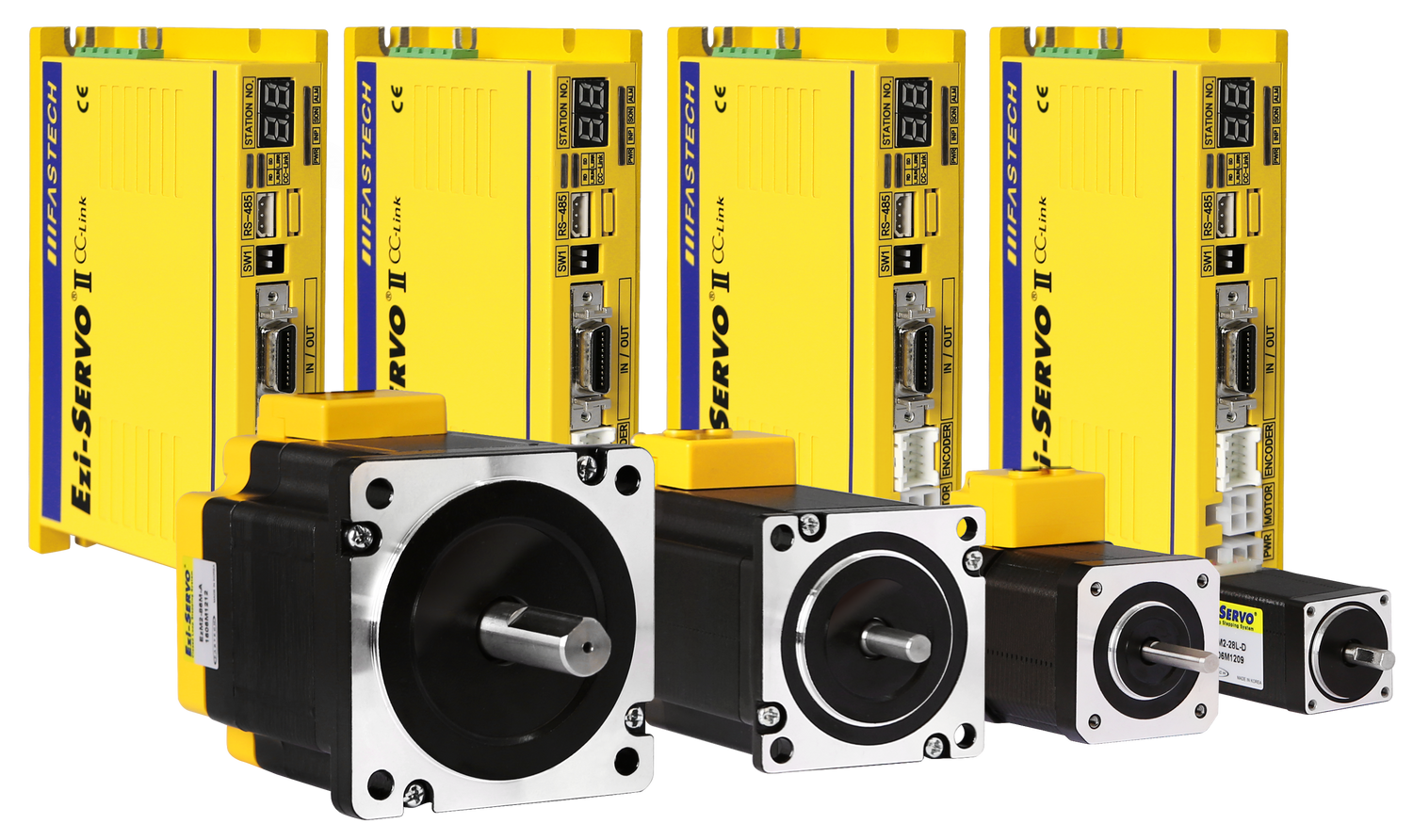

Ezi-SERVO II CC-Link

CC-Link Schrittmotorsystem

Schrittmotor + Encoder und Controller

Closed-Loop Schrittmotorsystem

Hochauflösend bis zu 20.000 ppr

Produkte
Motorspezifikation
Systemkonfiguration
Download
Ezi-SERVO II
Product Name
-
CL
Drive Series
-
42
Motor Flange Size 20: NEMA 8
28: NEMA 11
35: NEMA 14
42: NEMA 17
56: NEMA 23
60: NEMA 24
86: NEMA 34
S
Motor Length S: Small
M: Medium
L: Large
XL: Extra Large
-
A
Encoder Resolution A: 10.000 ppr
B: 20.000 ppr
D: 16.000 ppr
F: 4.000 ppr

Produkte

Produkt
Lieferzeit
Einzelpreis
inkl. MwSt


Ezi-SERVO II-CL-20L-F / NEMA 8 / large / 4,000ppr
Bis zu 2 Wochen
€614,04 EUR
Ezi-SERVO II-CL-20M-F / NEMA 8 / medium / 4,000ppr
Bis zu 2 Wochen
€604,52 EUR
Ezi-SERVO II-CL-28L-D / NEMA 11 / large / 16,000ppr
Bis zu 2 Wochen
€628,32 EUR
Ezi-SERVO II-CL-28M-D / NEMA 11 / medium / 16,000ppr
Bis zu 2 Wochen
€618,80 EUR
Ezi-SERVO II-CL-28S-D / NEMA 11 / small / 16,000ppr
Bis zu 2 Wochen
€604,52 EUR
Ezi-SERVO II-CL-35L-D / NEMA 14 / large / 16,000ppr
Bis zu 2 Wochen
€656,88 EUR
Ezi-SERVO II-CL-35M-D / NEMA 14 / medium / 16,000ppr
Bis zu 2 Wochen
€625,94 EUR
Ezi-SERVO II-CL-42L-A / NEMA 17 / large / 10,000ppr
Bis zu 2 Wochen
€592,62 EUR
Ezi-SERVO II-CL-42L-B / NEMA 17 / large / 20,000ppr
Bis zu 2 Wochen
€652,12 EUR
Ezi-SERVO II-CL-42M-A / NEMA 17 / medium / 10,000ppr
Bis zu 2 Wochen
€592,62 EUR
Ezi-SERVO II-CL-42M-B / NEMA 17 / medium / 20,000ppr
Bis zu 2 Wochen
€652,12 EUR
Ezi-SERVO II-CL-42S-A / NEMA 17 / small / 10,000ppr
Bis zu 2 Wochen
€587,86 EUR
Ezi-SERVO II-CL-42S-B / NEMA 17 / small / 20,000ppr
Bis zu 2 Wochen
€647,36 EUR
Ezi-SERVO II-CL-42XL-A / NEMA 17 / extra large / 10,000ppr
Bis zu 2 Wochen
€604,52 EUR
Ezi-SERVO II-CL-42XL-B / NEMA 17 / extra large / 20,000ppr
Bis zu 2 Wochen
€666,40 EUR
Ezi-SERVO II-CL-56L-A / NEMA 23 / large / 10,000ppr
Bis zu 2 Wochen
€625,94 EUR

Motorspezifikation

Ezi-SERVO II CL 20 series

Model 20M 20L
Drive Method Bi-Polar
Number of Phases 2
Current per Phase 0.5 A
Holding Torque 0.016 N·m 0.025 N·m
Rotor Inertia 2.5 g·cm² 3.3 g·cm²
Weight 80 g 104 g
Length 28 mm 38 mm
Permissible Overhung Load (3mm) 18 N
Permissible Overhung Load (8mm) 30 N
Permissible Overhung Load (13mm) -
Permissible Overhung Load (18mm) -
Permissible Thrust Load Lower than motor weight
Insulation Resistance 100 Min (at 500 VDC)
Insulation Class Class B (130 °C)
Operating Temperature 0 °C to 55 °C


Ezi-SERVO II CL 28 series

Model 28S 28M 28L
Drive Method Bi-Polar
Number of Phases 2
Current per Phase 0.95 A
Holding Torque 0.069 N·m 0.098 N·m 0.118 N·m
Rotor Inertia 9 g·cm² 13 g·cm² 18 g·cm²
Weight 147 g 204 g 232 g
Length 32 mm 45 mm 50 mm
Permissible Overhung Load (3mm) 30 N
Permissible Overhung Load (8mm) 38 N
Permissible Overhung Load (13mm) 53 N
Permissible Overhung Load (18mm) -
Permissible Thrust Load Lower than motor weight
Insulation Resistance 100 Min (at 500 VDC)
Insulation Class Class B (130 °C)
Operating Temperature 0 °C to 55 °C


Ezi-SERVO II CL 35 series

Model 35M 35L
Drive Method Bi-Polar
Number of Phases 2
Current per Phase 1.5 A
Holding Torque 0.13 N·m 0.23 N·m
Rotor Inertia 15 g·cm² 20 g·cm²
Weight 194 g 226 g
Length 32 mm 36 mm
Permissible Overhung Load (3mm) 22 N
Permissible Overhung Load (8mm) 26 N
Permissible Overhung Load (13mm) 33 N
Permissible Overhung Load (18mm) 46 N
Permissible Thrust Load Lower than motor weight
Insulation Resistance 100 Min (at 500 VDC)
Insulation Class Class B (130 °C)
Operating Temperature 0 °C to 55 °C


Ezi-SERVO II CL 42 series

Model 42S 42M 42L 42XL
Drive Method Bi-Polar
Number of Phases 2
Current per Phase 1.2 A
Holding Torque 0.32 N·m 0.44 N·m 0.5 N·m 0.65 N·m
Rotor Inertia 35 g·cm² 54 g·cm² 77 g·cm² 114 g·cm²
Weight 294 g 357 g 426 g 564 g
Length 34 mm 40 mm 48 mm 60 mm
Permissible Overhung Load (3mm) 22 N
Permissible Overhung Load (8mm) 26 N
Permissible Overhung Load (13mm) 33 N
Permissible Overhung Load (18mm) 46 N
Permissible Thrust Load Lower than motor weight
Insulation Resistance 100 Min (at 500 VDC)
Insulation Class Class B (130 °C)
Operating Temperature 0 °C to 55 °C


Ezi-SERVO II CL 56 series

Model 56S 56M 56L
Drive Method Bi-Polar
Number of Phases 2
Current per Phase 3.0 A
Holding Torque 0.64 N·m 1.0 N·m 1.5 N·m
Rotor Inertia 180 g·cm² 280 g·cm² 520 g·cm²
Weight 608 g 784 g 1230 g
Length 46 mm 55 mm 80 mm
Permissible Overhung Load (3mm) 52 N
Permissible Overhung Load (8mm) 65 N
Permissible Overhung Load (13mm) 85 N
Permissible Overhung Load (18mm) 123 N
Permissible Thrust Load Lower than motor weight
Insulation Resistance 100 Min (at 500 VDC)
Insulation Class
Operating Temperature 0 °C to 55 °C


Ezi-SERVO II CL 60 series

Model 60S 60M 60L
Drive Method Bi-Polar
Number of Phases 2
Current per Phase 4.0 A
Holding Torque 0.88 N·m 1.28 N·m 2.4 N·m
Rotor Inertia 240 g·cm² 490 g·cm² 690 g·cm²
Weight 693 g 856 g 1419 g
Length 47 mm 56 mm 85 mm
Permissible Overhung Load (3mm) 70 N
Permissible Overhung Load (8mm) 87 N
Permissible Overhung Load (13mm) 114 N
Permissible Overhung Load (18mm) 165 N
Permissible Thrust Load Lower than motor weight
Insulation Resistance 100 Min (at 500 VDC)
Insulation Class Class B (130 °C)
Operating Temperature 0 °C to 55 °C


Ezi-SERVO II CL 86 series

Model 86M 86L 86XL
Drive Method Bi-Polar
Number of Phases 2
Current per Phase 6.0 A
Holding Torque 4.5 N·m 8.5 N·m 12 N·m
Rotor Inertia 1800 g·cm² 3600 g·cm² 5400 g·cm²
Weight 2355 g 3941 g 5453 g
Length 78 mm 117 mm 155 mm
Permissible Overhung Load (3mm) 270 N
Permissible Overhung Load (8mm) 300 N
Permissible Overhung Load (13mm) 350 N
Permissible Overhung Load (18mm) 400 N
Permissible Thrust Load Lower than motor weight
Insulation Resistance 100 Min (at 500 VDC)
Insulation Class Class B (130 °C)
Operating Temperature 0 °C to 55 °C


Model 20M 20L 28S 28M 28L 35M 35L 42S 42M 42L 42XL
Drive Method Bi-Polar
Number of Phases 2
Current per Phase 0.5 A 0.95 A 1.5 A 1.2 A
Holding Torque 0.016 N·m 0.025 N·m 0.069 N·m 0.098 N·m 0.118 N·m 0.13 N·m 0.23 N·m 0.32 N·m 0.44 N·m 0.5 N·m 0.65 N·m
Rotor Inertia 2.5 g·cm² 3.3 g·cm² 9 g·cm² 13 g·cm² 18 g·cm² 15 g·cm² 20 g·cm² 35 g·cm² 54 g·cm² 77 g·cm² 114 g·cm²
Weight 80 g 104 g 147 g 204 g 232 g 194 g 226 g 294 g 357 g 426 g 564 g
Length 28 mm 38 mm 32 mm 45 mm 50 mm 32 mm 36 mm 34 mm 40 mm 48 mm 60 mm
Permissible Overhung Load (3mm) 18 N 30 N 22 N 22 N
Permissible Overhung Load (8mm) 30 N 38 N 26 N 26 N
Permissible Overhung Load (13mm) - 53 N 33 N 33 N
Permissible Overhung Load (18mm) - - 46 N 46 N
Permissible Thrust Load Lower than motor weight
Insulation Resistance 100 Min (at 500 VDC)
Insulation Class Class B (130 °C)
Operating Temperature 0 °C to 55 °C
Model 56S 56M 56L 60S 60M 60L 86M 86L 86XL
Drive Method Bi-Polar
Number of Phases 2
Current per Phase 3.0 A 4.0 A 6.0 A
Holding Torque 0.64 N·m 1.0 N·m 1.5 N·m 0.88 N·m 1.28 N·m 2.4 N·m 4.5 N·m 8.5 N·m 12 N·m
Rotor Inertia 180 g·cm² 280 g·cm² 520 g·cm² 240 g·cm² 490 g·cm² 690 g·cm² 1800 g·cm² 3600 g·cm² 5400 g·cm²
Weight 608 g 784 g 1230 g 693 g 856 g 1419 g 2355 g 3941 g 5453 g
Length 46 mm 55 mm 80 mm 47 mm 56 mm 85 mm 78 mm 117 mm 155 mm
Permissible Overhung Load (3mm) 52 N 70 N 270 N
Permissible Overhung Load (8mm) 65 N 87 N 300 N
Permissible Overhung Load (13mm) 85 N 114 N 350 N
Permissible Overhung Load (18mm) 123 N 165 N 400 N
Permissible Thrust Load Lower than motor weight
Insulation Resistance 100 Min (at 500 VDC)
Insulation Class Class B (130 °C)
Operating Temperature 0 °C to 55 °C

Systemkonfiguration

  • Ezi-SERVO II CC-Link

  • Ezi-SERVO II CC-Link 86mm

Download

  • Katalog

    Enthält alle technischen Informationen und Spezifikationen für den Ezi-SERVO II CC-Link

    Download

  • Manual

    User Manual

    Download

  • Software

    Enthält Software, DLL und Programmierbeispiele
