RS 485 Schrittmotorsystem

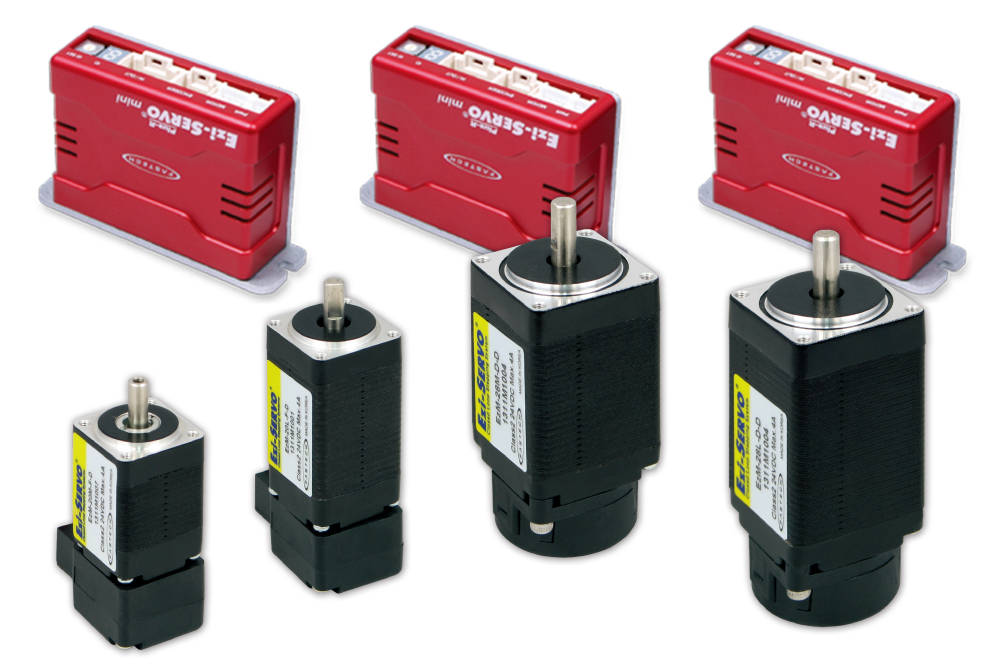

Schrittmotor und Controller
Open-Loop Schrittmotorsystem
Positionstabellen für bis zu 64 Anweisungen
Daisy Chain bis zu 16 Motoren
Schrittauflösungen von 1,8° bis zu 0,0072°
Softwaregesteuerte Vibrationsunterdrückung
Ezi-STEP
Product Name
PR-MI
Drive Series
42
Motor Flange Size
20: NEMA 828: NEMA 11
42: NEMA 17
S
Motor Length
S: SmallM: Medium
L: Large
XL: Extra Large
Produkte
Ezi-STEP-PR-MI-20L / NEMA 8 / large
€528,36 EUR
Ezi-STEP-PR-MI-20M / NEMA 8 / medium
€523,60 EUR
Ezi-STEP-PR-MI-28L / NEMA 11 / large
€537,88 EUR
Ezi-STEP-PR-MI-28M / NEMA 11 / medium
€530,74 EUR
Ezi-STEP-PR-MI-28S / NEMA 11 / small
€525,98 EUR
Ezi-STEP-PR-MI-42L / NEMA 17 / large
€511,70 EUR
Ezi-STEP-PR-MI-42M / NEMA 17 / medium
€506,94 EUR
Ezi-STEP-PR-MI-42S / NEMA 17 / small
€504,56 EUR
Ezi-STEP-PR-MI-42XL / NEMA 17 / extra large
€511,70 EUR
Motorspezifikation
Einklappbarer Inhalt
Ezi-STEP-PR-MI 20 series
Model | 20M | 20L |
---|---|---|
Drive Method | Bi-Polar | |
Number of Phases | 2 | |
Current per Phase | 0.5 A | |
Holding Torque | 0.016 N·m | 0.025 N·m |
Rotor Inertia | 2.5 g·cm² | 3.3 g·cm² |
Weight | 53 g | 78 g |
Length | 28 mm | 38 mm |
Permissible Overhung Load (3mm) | 18 N | |
Permissible Overhung Load (8mm) | 30 N | |
Permissible Overhung Load (13mm) | - | |
Permissible Overhung Load (18mm) | - | |
Permissible Thrust Load | Lower than motor weight | |
Insulation Resistance | 100 Min (at 500 VDC) | |
Insulation Class | Class B (130 °C) | |
Operating Temperature | 0 °C to 55 °C |
Ezi-STEP-PR-MI 28 series
Model | 28S | 28M | 28L |
---|---|---|---|
Drive Method | Bi-Polar | ||
Number of Phases | 2 | ||
Current per Phase | 0.95 A | ||
Holding Torque | 0.069 N·m | 0.098 N·m | 0.118 N·m |
Rotor Inertia | 9 g·cm² | 13 g·cm² | 18 g·cm² |
Weight | 115 g | 174 g | 202 g |
Length | 32 mm | 45 mm | 50 mm |
Permissible Overhung Load (3mm) | 30 N | ||
Permissible Overhung Load (8mm) | 38 N | ||
Permissible Overhung Load (13mm) | 53 N | ||
Permissible Overhung Load (18mm) | - | ||
Permissible Thrust Load | Lower than motor weight | ||
Insulation Resistance | 100 Min (at 500 VDC) | ||
Insulation Class | Class B (130 °C) | ||
Operating Temperature | 0 °C to 55 °C |
Ezi-STEP-PR-MI 42 series
Model | 42S | 42M | 42L | 42XL |
---|---|---|---|---|
Drive Method | Bi-Polar | |||
Number of Phases | 2 | |||
Current per Phase | 1.2 A | |||
Holding Torque | 0.32 N·m | 0.44 N·m | 0.5 N·m | 0.65 N·m |
Rotor Inertia | 20 g·cm² | 54 g·cm² | 77 g·cm² | 114 g·cm² |
Weight | 238 g | 303 g | 374 g | 508 g |
Length | 34 mm | 40 mm | 48 mm | 60 mm |
Permissible Overhung Load (3mm) | 22 N | |||
Permissible Overhung Load (8mm) | 26 N | |||
Permissible Overhung Load (13mm) | 33 N | |||
Permissible Overhung Load (18mm) | 46 N | |||
Permissible Thrust Load | Lower than motor weight | |||
Insulation Resistance | 100 Min (at 500 VDC) | |||
Insulation Class | Class B (130 °C) | |||
Operating Temperature | 0 °C to 55 °C |
Model | 20M | 20L | 28S | 28M | 28L | 42S | 42M | 42L | 42XL |
---|---|---|---|---|---|---|---|---|---|
Drive Method | Bi-Polar | ||||||||
Number of Phases | 2 | ||||||||
Current per Phase | 0.5 A | 0.95 A | 1.2 A | ||||||
Holding Torque | 0.016 N·m | 0.025 N·m | 0.069 N·m | 0.098 N·m | 0.118 N·m | 0.32 N·m | 0.44 N·m | 0.5 N·m | 0.65 N·m |
Rotor Inertia | 2.5 g·cm² | 3.3 g·cm² | 9 g·cm² | 13 g·cm² | 18 g·cm² | 20 g·cm² | 54 g·cm² | 77 g·cm² | 114 g·cm² |
Weight | 53 g | 78 g | 115 g | 174 g | 202 g | 238 g | 303 g | 374 g | 508 g |
Length | 28 mm | 38 mm | 32 mm | 45 mm | 50 mm | 34 mm | 40 mm | 48 mm | 60 mm |
Permissible Overhung Load (3mm) | 18 N | 30 N | 22 N | ||||||
Permissible Overhung Load (8mm) | 30 N | 38 N | 26 N | ||||||
Permissible Overhung Load (13mm) | - | 53 N | 33 N | ||||||
Permissible Overhung Load (18mm) | - | - | 46 N | ||||||
Permissible Thrust Load | Lower than motor weight | ||||||||
Insulation Resistance | 100 Min (at 500 VDC) | ||||||||
Insulation Class | Class B (130 °C) | ||||||||
Operating Temperature | 0 °C to 55 °C |
