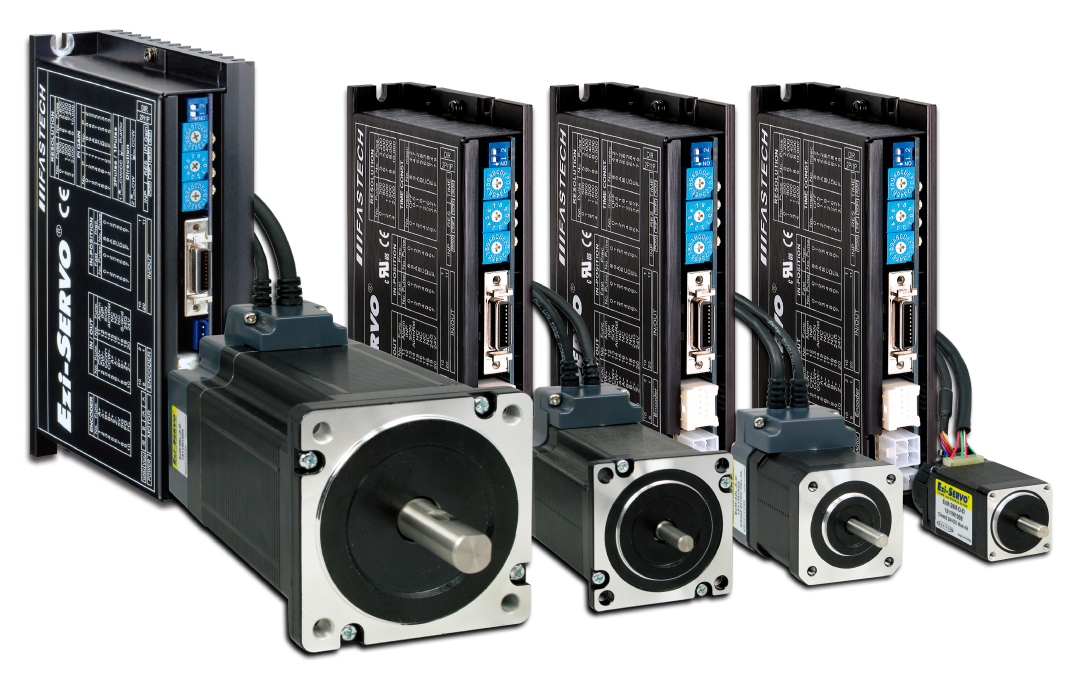

Impuls Schrittmotorsystem
Keine Schrittfehler
Durch den eingebauten Encoder, der ständig die aktuelle Position überwacht, kann es nicht zu einem Ausfall kommen. Wenn ein Schrittfehler durch eine externe Kraft oder Überlast auftritt, wird ein Alarmsignal an die obere Steuerung gesendet. Auf diese Weise kann die obere Steuerung den Schrittfehler des Schrittmotors erkennen.
S-SERVO II
Product Name
ST
Drive Series
42
Motor Flange Size
20: NEMA 828: NEMA 11
35: NEMA 14
42: NEMA 17
56: NEMA 23
60: NEMA 24
S
Motor Length
S: SmallM: Medium
L: Large
XL: Extra Large
A
Encoder Resolution
A: 10.000 pprD: 16.000 ppr
F: 4.000 ppr
Produkte
S-SERVO II-ST-20L-F / NEMA 8 / large / 4,000ppr
€283,22 EUR
S-SERVO II-ST-20M-F / NEMA 8 / medium / 4,000ppr
€283,22 EUR
S-SERVO II-ST-28L-D / NEMA 11 / large / 16,000ppr
€280,84 EUR
S-SERVO II-ST-28L-F / NEMA 11 / large / 4,000ppr
€280,84 EUR
S-SERVO II-ST-28M-D / NEMA 11 / medium / 16,000ppr
€278,46 EUR
S-SERVO II-ST-28M-F / NEMA 11 / medium / 4,000ppr
€278,46 EUR
S-SERVO II-ST-28S-D / NEMA 11 / small / 16,000ppr
€278,46 EUR
S-SERVO II-ST-28S-F / NEMA 11 / small / 4,000ppr
€278,46 EUR
S-SERVO II-ST-35L-D / NEMA 14 / large / 16,000ppr
€271,32 EUR
S-SERVO II-ST-35L-F / NEMA 14 / large / 4,000ppr
€271,32 EUR
S-SERVO II-ST-35M-D / NEMA 14 / medium / 16,000ppr
€268,94 EUR
S-SERVO II-ST-35M-F / NEMA 14 / medium / 4,000ppr
€268,94 EUR
S-SERVO II-ST-42L-A / NEMA 17 / large / 10,000ppr
€276,08 EUR
S-SERVO II-ST-42L-F / NEMA 17 / large / 4,000ppr
€276,08 EUR
S-SERVO II-ST-42M-A / NEMA 17 / medium / 10,000ppr
€273,70 EUR
S-SERVO II-ST-42M-F / NEMA 17 / medium / 4,000ppr
€273,70 EUR
Motorspezifikation
Einklappbarer Inhalt
S-SERVO II ST 20 series
Model | 20M | 20L |
---|---|---|
Drive Method | Bi-Polar | |
Number of Phases | 2 | |
Current per Phase | 0.6 A | |
Holding Torque | 0.018 N·m | 0.037 N·m |
Rotor Inertia | 3 g·cm² | 3.3 g·cm² |
Weight | 92 g | 105 g |
Length | 33 mm | 38 mm |
Permissible Overhung Load (3mm) | 18 N | |
Permissible Overhung Load (8mm) | 30 N | |
Permissible Overhung Load (13mm) | - | |
Permissible Overhung Load (18mm) | - | |
Permissible Thrust Load | Lower than motor weight | |
Insulation Resistance | 100 Min (at 500 VDC) | |
Insulation Class | Class B (130 °C) | |
Operating Temperature | 0 °C to 55 °C |
S-SERVO II ST 28 series
Model | 28S | 28M | 28L |
---|---|---|---|
Drive Method | Bi-Polar | ||
Number of Phases | 2 | ||
Current per Phase | 0.67 A | ||
Holding Torque | 0.069 N·m | 0.098 N·m | 0.118 N·m |
Rotor Inertia | 9 g·cm² | 13 g·cm² | 18 g·cm² |
Weight | 146 g | 203 g | 227 g |
Length | 32 mm | 45 mm | 50 mm |
Permissible Overhung Load (3mm) | 30 N | ||
Permissible Overhung Load (8mm) | 38 N | ||
Permissible Overhung Load (13mm) | 53 N | ||
Permissible Overhung Load (18mm) | - | ||
Permissible Thrust Load | Lower than motor weight | ||
Insulation Resistance | 100 Min (at 500 VDC) | ||
Insulation Class | Class B (130 °C) | ||
Operating Temperature | 0 °C to 55 °C |
S-SERVO II ST 35 series
Model | 35M | 35L |
---|---|---|
Drive Method | Bi-Polar | |
Number of Phases | 2 | |
Current per Phase | 0.8 A | 1.0 A |
Holding Torque | 0.078 N·m | 0.137 N·m |
Rotor Inertia | 10 g·cm² | 14 g·cm² |
Weight | 152 g | 210 g |
Length | 26 mm | 36 mm |
Permissible Overhung Load (3mm) | 22 N | |
Permissible Overhung Load (8mm) | 26 N | |
Permissible Overhung Load (13mm) | 33 N | |
Permissible Overhung Load (18mm) | 46 N | |
Permissible Thrust Load | Lower than motor weight | |
Insulation Resistance | 100 Min (at 500 VDC) | |
Insulation Class | Class B (130 °C) | |
Operating Temperature | 0 °C to 55 °C |
S-SERVO II ST 42 series
Model | 42S | 42M | 42L | 42XL |
---|---|---|---|---|
Drive Method | Bi-Polar | |||
Number of Phases | 2 | |||
Current per Phase | 1.3 A | 1.68 A | 1.2 A | |
Holding Torque | 0.216 N·m | 0.353 N·m | 0.431 N·m | 0.65 N·m |
Rotor Inertia | 35 g·cm² | 54 g·cm² | 68 g·cm² | 114 g·cm² |
Weight | 278 g | 341 g | 416 g | 566 g |
Length | 33 mm | 39 mm | 47 mm | 60 mm |
Permissible Overhung Load (3mm) | 22 N | |||
Permissible Overhung Load (8mm) | 26 N | |||
Permissible Overhung Load (13mm) | 33 N | |||
Permissible Overhung Load (18mm) | 46 N | |||
Permissible Thrust Load | Lower than motor weight | |||
Insulation Resistance | 100 Min (at 500 VDC) | |||
Insulation Class | Class B (130 °C) | |||
Operating Temperature | 0 °C to 55 °C |
S-SERVO II ST 56 series
Model | 56S | 56M | 56L |
---|---|---|---|
Drive Method | Bi-Polar | ||
Number of Phases | 2 | ||
Current per Phase | 2.8 A | ||
Holding Torque | 0.539 N·m | 1 N·m | 1.72 N·m |
Rotor Inertia | 120 g·cm² | 300 g·cm² | 480 g·cm² |
Weight | 506 g | 742 g | 1075 g |
Length | 41 mm | 56 mm | 76 mm |
Permissible Overhung Load (3mm) | 52 N | ||
Permissible Overhung Load (8mm) | 65 N | ||
Permissible Overhung Load (13mm) | 85 N | ||
Permissible Overhung Load (18mm) | 123 N | ||
Permissible Thrust Load | Lower than motor weight | ||
Insulation Resistance | 100 Min (at 500 VDC) | ||
Insulation Class | Class B (130 °C) | ||
Operating Temperature | 0 °C to 55 °C |
S-SERVO II ST 60 series
Model | 60S | 60M | 60L |
---|---|---|---|
Drive Method | Bi-Polar | ||
Number of Phases | 2 | ||
Current per Phase | 4.0 A | ||
Holding Torque | 0.88 N·m | 1.28 N·m | 2.4 N·m |
Rotor Inertia | 240 g·cm² | 490 g·cm² | 690 g·cm² |
Weight | 700 g | 864 g | 1418 g |
Length | 47 mm | 56 mm | 85 mm |
Permissible Overhung Load (3mm) | 70 N | ||
Permissible Overhung Load (8mm) | 87 N | ||
Permissible Overhung Load (13mm) | 114 N | ||
Permissible Overhung Load (18mm) | 165 N | ||
Permissible Thrust Load | Lower than motor weight | ||
Insulation Resistance | 100 Min (at 500 VDC) | ||
Insulation Class | Class B (130 °C) | ||
Operating Temperature | 0 °C to 55 °C |
Model | 20M | 20L | 28S | 28M | 28L | 35M | 35L | 42S | 42M | 42L | 42XL |
---|---|---|---|---|---|---|---|---|---|---|---|
Drive Method | Bi-Polar | ||||||||||
Number of Phases | 2 | ||||||||||
Current per Phase | 0.6 A | 0.67 A | 0.8 A | 1 A | 1.3 A | 1.68 A | 1.2 A | ||||
Holding Torque | 0.018 N·m | 0.037 N·m | 0.069 N·m | 0.098 N·m | 0.118 N·m | 0.078 N·m | 0.137 N·m | 0.216 N·m | 0.353 N·m | 0.431 N·m | 0.65 N·m |
Rotor Inertia | 3 g·cm² | 3.3 g·cm² | 9 g·cm² | 13 g·cm² | 18 g·cm² | 10 g·cm² | 14 g·cm² | 35 g·cm² | 54 g·cm² | 68 g·cm² | 114 g·cm² |
Weight | 92 g | 105 g | 146 g | 203 g | 227 g | 152 g | 210 g | 278 g | 341 g | 416 g | 566 g |
Length | 33 mm | 38 mm | 32 mm | 45 mm | 50 mm | 26 mm | 36 mm | 33 mm | 39 mm | 47 mm | 60 mm |
Permissible Overhung Load (3mm) | 18 N | 30 N | 22 N | 22 N | |||||||
Permissible Overhung Load (8mm) | 30 N | 38 N | 26 N | 26 N | |||||||
Permissible Overhung Load (13mm) | - | 53 N | 33 N | 33 N | |||||||
Permissible Overhung Load (18mm) | - | - | 46 N | 46 N | |||||||
Permissible Thrust Load | Lower than motor weight | ||||||||||
Insulation Resistance | 100 Min (at 500 VDC) | ||||||||||
Insulation Class | Class B (130 °C) | ||||||||||
Operating Temperature | 0 °C to 55 °C |
Model | 56S | 56M | 56L | 60S | 60M | 60L |
---|---|---|---|---|---|---|
Drive Method | Bi-Polar | |||||
Number of Phases | 2 | |||||
Current per Phase | 2.8 A | 4.0 A | ||||
Holding Torque | 0.539 N·m | 1 N·m | 1.72 N·m | 0.88 N·m | 1.28 N·m | 2.4 N·m |
Rotor Inertia | 120 g·cm² | 300 g·cm² | 480 g·cm² | 240 g·cm² | 490 g·cm² | 690 g·cm² |
Weight | 506 g | 742 g | 1075 g | 700 g | 864 g | 1418 g |
Length | 41 mm | 56 mm | 76 mm | 47 mm | 56 mm | 85 mm |
Permissible Overhung Load (3mm) | 52 N | 70 N | ||||
Permissible Overhung Load (8mm) | 65 N | 87 N | ||||
Permissible Overhung Load (13mm) | 85 N | 114 N | ||||
Permissible Overhung Load (18mm) | 123 N | 165 N | ||||
Permissible Thrust Load | Lower than motor weight | |||||
Insulation Resistance | 100 Min (at 500 VDC) | |||||
Insulation Class | Class B (130 °C) | |||||
Operating Temperature | 0 °C to 55 °C |
