RS 485 Schrittmotorsystem
Schrittmotor mit integriertem Controller
Open-Loop Schrittmotorsystem
Ezi-SERVO is an innovative Closed Loop System that utilizes a high-resolution motor mounted encoder constantly to monitor the current position. The encoder feedback allows the Ezi-SERVO to update the current position every 25 micro seconds. It allows the Ezi-SERVO drive to compensate for the loss of position, ensuring accurate positioning. For example, due to a sudden load change, a conventional stepper motor and drive could lose a step but Ezi-SERVO automatically correct the position by encoder feedback.
Positionstabellen für bis zu 64 Anweisungen
Daisy Chain bis zu 16 Motoren
Schrittauflösungen von 1,8° bis zu 0,0072°
Softwaregesteuerte Vibrationsunterdrückung

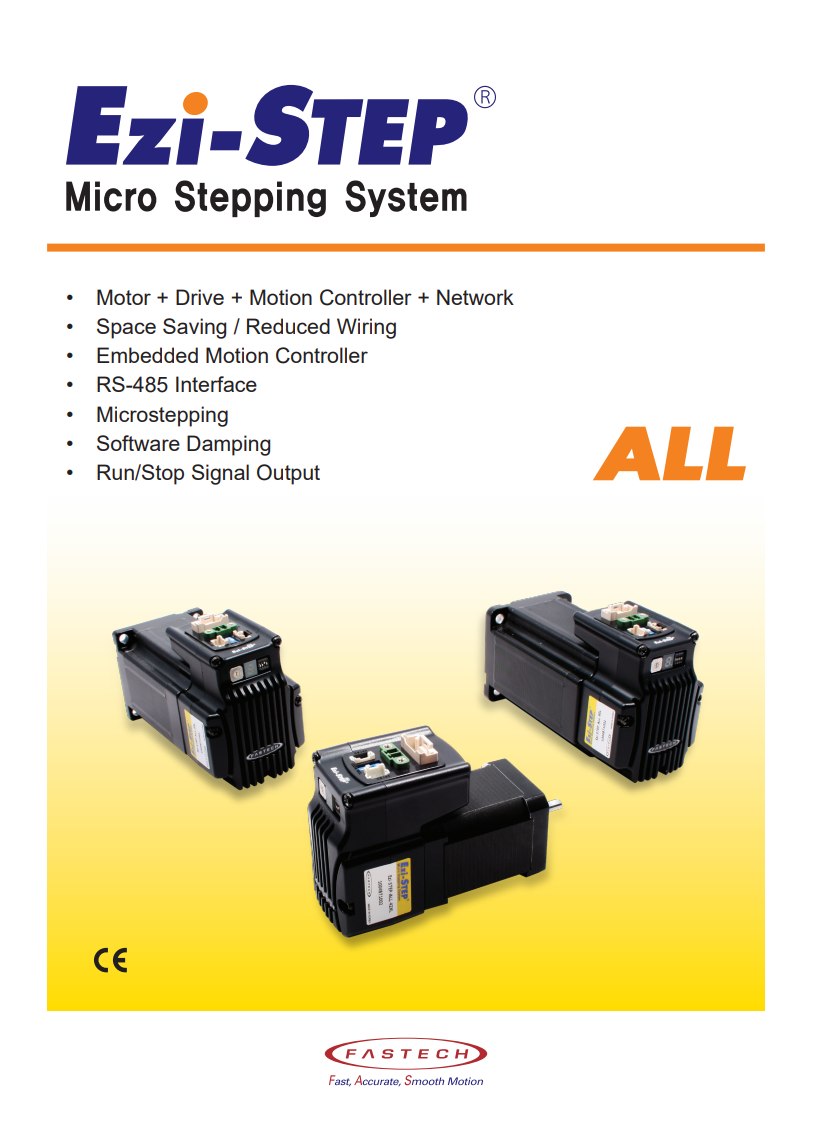

Ezi-STEP
Product Name
ALL
Drive Series
42
Motor Flange Size
42: NEMA 1756: NEMA 23
S
Motor Length
S: SmallM: Medium
L: Large
XL: Extra Large
Produkte
Produkt
Lieferzeit
Einzelpreis
inkl. MwSt
inkl. MwSt
Ezi-STEP-ALL-42L / NEMA 17 / large
Bis zu 2 Wochen
€478,50 EUR
Ezi-STEP-ALL-42M / NEMA 17 / medium
Bis zu 2 Wochen
€475,76 EUR
Ezi-STEP-ALL-42S / NEMA 17 / small
Bis zu 2 Wochen
€471,14 EUR
Ezi-STEP-ALL-42XL / NEMA 17 / extra large
Bis zu 2 Wochen
€486,00 EUR
Ezi-STEP-ALL-56L / NEMA 23 / large
Bis zu 2 Wochen
€502,32 EUR
Ezi-STEP-ALL-56M / NEMA 23 / medium
Bis zu 2 Wochen
€489,28 EUR
Ezi-STEP-ALL-56S / NEMA 23 / small
Bis zu 2 Wochen
€482,66 EUR
Motorspezifikation
Einklappbarer Inhalt
Ezi-STEP-ALL 42 series
| Model | 42S | 42M | 42L | 42XL |
|---|---|---|---|---|
| Drive Method | Bi-Polar | |||
| Number of Phases | 2 | |||
| Current per Phase | 1.2 A | |||
| Holding Torque | 0.32 N·m | 0.44 N·m | 0.5 N·m | 0.65 N·m |
| Rotor Inertia | 35 g·cm² | 54 g·cm² | 77 g·cm² | 114 g·cm² |
| Weight | 340 g | 405 g | 480 g | 601 g |
| Length | 34 mm | 40 mm | 48 mm | 60 mm |
| Permissible Overhung Load (3mm) | 22 N | |||
| Permissible Overhung Load (8mm) | 26 N | |||
| Permissible Overhung Load (13mm) | 33 N | |||
| Permissible Overhung Load (18mm) | 46 N | |||
| Permissible Thrust Load | Lower than motor weight | |||
| Insulation Resistance | 100 Min (at 500 VDC) | |||
| Insulation Class | Class B (130 °C) | |||
| Operating Temperature | 0 °C to 55 °C | |||
Ezi-STEP-ALL 56 series
| Model | 56S | 56M | 56L |
|---|---|---|---|
| Drive Method | Bi-Polar | ||
| Number of Phases | 2 | ||
| Current per Phase | 3.0 A | ||
| Holding Torque | 0.64 N·m | 1.0 N·m | 1.5 N·m |
| Rotor Inertia | 180 g·cm² | 280 g·cm² | 520 g·cm² |
| Weight | 643 g | 802 g | 1290 g |
| Length | 46 mm | 55 mm | 80 mm |
| Permissible Overhung Load (3mm) | 52 N | ||
| Permissible Overhung Load (8mm) | 65 N | ||
| Permissible Overhung Load (13mm) | 85 N | ||
| Permissible Overhung Load (18mm) | 123 N | ||
| Permissible Thrust Load | Lower than motor weight | ||
| Insulation Resistance | 100 Min (at 500 VDC) | ||
| Insulation Class | Class B (130 °C) | ||
| Operating Temperature | 0 °C to 55 °C | ||
| Model | 42S | 42M | 42L | 42XL | 56S | 56M | 56L |
|---|---|---|---|---|---|---|---|
| Drive Method | Bi-Polar | ||||||
| Number of Phases | 2 | ||||||
| Current per Phase | 1.2 A | 3.0 A | |||||
| Holding Torque | 0.32 N·m | 0.44 N·m | 0.5 N·m | 0.65 N·m | 0.64 N·m | 1.0 N·m | 1.5 N·m |
| Rotor Inertia | 35 g·cm² | 54 g·cm² | 77 g·cm² | 114 g·cm² | 180 g·cm² | 280 g·cm² | 520 g·cm² |
| Weight | 340 g | 405 g | 480 g | 601 g | 643 g | 802 g | 1290 g |
| Length | 34 mm | 40 mm | 48 mm | 60 mm | 46 mm | 55 mm | 80 mm |
| Permissible Overhung Load (3mm) | 22 N | 52 N | |||||
| Permissible Overhung Load (8mm) | 26 N | 65 N | |||||
| Permissible Overhung Load (13mm) | 33 N | 85 N | |||||
| Permissible Overhung Load (18mm) | 46 N | 123 N | |||||
| Permissible Thrust Load | Lower than motor weight | ||||||
| Insulation Resistance | 100 Min (at 500 VDC) | ||||||
| Insulation Class | Class B (130 °C) | ||||||
| Operating Temperature | 0 °C to 55 °C | ||||||
Systemkonfiguration
-
Ezi-STEP ALL
