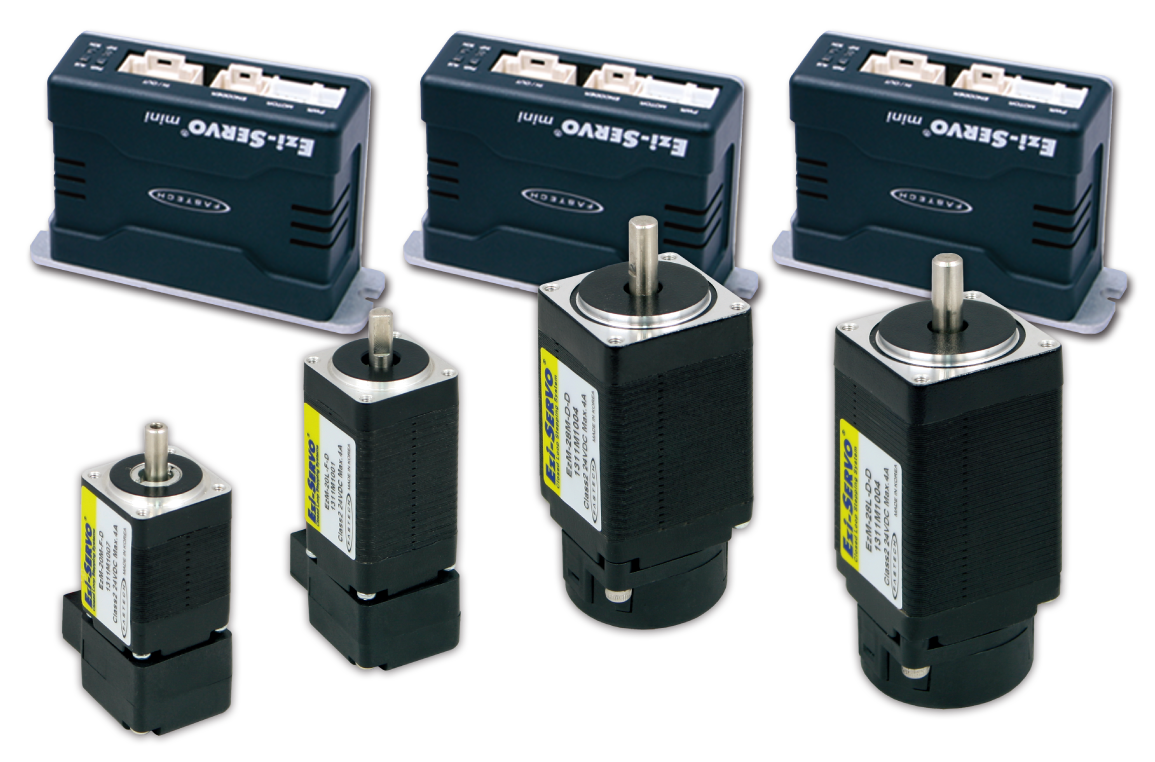

Ezi-SERVO MINI

Impuls Schrittmotorsystem

Schrittmotor + Encoder und Controller

Closed-Loop Schrittmotorsystem

Hochauflösend bis zu 32.000 ppr

Produkte
Motorspezifikation
Systemkonfiguration
Download
Ezi-SERVO
Product Name
-
MI
Drive Series
-
42
Motor Flange Size 20: NEMA 8
28: NEMA 11
35: NEMA 14
42: NEMA 17
S
Motor Length S: Small
M: Medium
L: Large
XL: Extra Large
-
A
Encoder Resolution A: 10.000 ppr
B: 20.000 ppr
C: 32.000 ppr
D: 16.000 ppr
F: 4.000 ppr

Produkte

Produkt
Lieferzeit
Einzelpreis
inkl. MwSt


Ezi-SERVO-MI-20L-F / NEMA 8 / large / 4,000ppr
Bis zu 2 Wochen
€404,60 EUR
Ezi-SERVO-MI-20M-F / NEMA 8 / medium / 4,000ppr
Bis zu 2 Wochen
€395,08 EUR
Ezi-SERVO-MI-28L-D / NEMA 11 / large / 16,000ppr
Bis zu 2 Wochen
€418,88 EUR
Ezi-SERVO-MI-28M-D / NEMA 11 / medium / 16,000ppr
Bis zu 2 Wochen
€409,36 EUR
Ezi-SERVO-MI-28S-D / NEMA 11 / small / 16,000ppr
Bis zu 2 Wochen
€395,08 EUR
Ezi-SERVO-MI-35L-D / NEMA 14 / large / 16,000ppr
Bis zu 2 Wochen
€447,44 EUR
Ezi-SERVO-MI-35M-D / NEMA 14 / medium / 16,000ppr
Bis zu 2 Wochen
€416,50 EUR
Ezi-SERVO-MI-42L-A / NEMA 17 / large / 10,000ppr
Bis zu 2 Wochen
€383,18 EUR
Ezi-SERVO-MI-42L-B / NEMA 17 / large / 20,000ppr
Bis zu 2 Wochen
€423,64 EUR
Ezi-SERVO-MI-42L-C / NEMA 17 / large / 32,000ppr
Bis zu 2 Wochen
€466,48 EUR
Ezi-SERVO-MI-42M-A / NEMA 17 / medium / 10,000ppr
Bis zu 2 Wochen
€383,18 EUR
Ezi-SERVO-MI-42M-B / NEMA 17 / medium / 20,000ppr
Bis zu 2 Wochen
€423,64 EUR
Ezi-SERVO-MI-42M-C / NEMA 17 / medium / 32,000ppr
Bis zu 2 Wochen
€466,48 EUR
Ezi-SERVO-MI-42S-A / NEMA 17 / small / 10,000ppr
Bis zu 2 Wochen
€378,42 EUR
Ezi-SERVO-MI-42S-B / NEMA 17 / small / 20,000ppr
Bis zu 2 Wochen
€416,50 EUR
Ezi-SERVO-MI-42S-C / NEMA 17 / small / 32,000ppr
Bis zu 2 Wochen
€459,34 EUR

Motorspezifikation

Ezi-SERVO MINI 20 series

Model 20M 20L
Drive Method Bi-Polar
Number of Phases 2
Current per Phase 0.5 A
Holding Torque 0.016 N·m 0.025 N·m
Rotor Inertia 2.5 g·cm² 3.3 g·cm²
Weight 80 g 104 g
Length 28 mm 38 mm
Permissible Overhung Load (3mm) 18 N
Permissible Overhung Load (8mm) 30 N
Permissible Overhung Load (13mm) -
Permissible Overhung Load (18mm) -
Permissible Thrust Load Lower than motor weight
Insulation Resistance 100 Min (at 500 VDC)
Insulation Class Class B (130 °C)
Operating Temperature 0 °C to 55 °C


Ezi-SERVO MINI 28 series

Model 28S 28M 28L
Drive Method Bi-Polar
Number of Phases 2
Current per Phase 0.95 A
Holding Torque 0.069 N·m 0.098 N·m 0.118 N·m
Rotor Inertia 9 g·cm² 13 g·cm² 18 g·cm²
Weight 147 g 204 g 232 g
Length 32 mm 45 mm 50 mm
Permissible Overhung Load (3mm) 30 N
Permissible Overhung Load (8mm) 38 N
Permissible Overhung Load (13mm) 53 N
Permissible Overhung Load (18mm) -
Permissible Thrust Load Lower than motor weight
Insulation Resistance 100 Min (at 500 VDC)
Insulation Class Class B (130 °C)
Operating Temperature 0 °C to 55 °C


Ezi-SERVO MINI 35 series

Model 35M 35L
Drive Method Bi-Polar
Number of Phases 2
Current per Phase 1.5 A
Holding Torque 0.13 N·m 0.23 N·m
Rotor Inertia 15 g·cm² 20 g·cm²
Weight 194 g 226 g
Length 32 mm 36 mm
Permissible Overhung Load (3mm) 22 N
Permissible Overhung Load (8mm) 26 N
Permissible Overhung Load (13mm) 33 N
Permissible Overhung Load (18mm) 46 N
Permissible Thrust Load Lower than motor weight
Insulation Resistance 100 Min (at 500 VDC)
Insulation Class Class B (130 °C)
Operating Temperature 0 °C to 55 °C


Ezi-SERVO MINI 42 series

Model 42S 42M 42L 42XL
Drive Method Bi-Polar
Number of Phases 2
Current per Phase 1.2 A
Holding Torque 0.32 N·m 0.44 N·m 0.5 N·m 0.65 N·m
Rotor Inertia 35 g·cm² 54 g·cm² 77 g·cm² 114 g·cm²
Weight 294 g 357 g 426 g 564 g
Length 34 mm 40 mm 48 mm 60 mm
Permissible Overhung Load (3mm) 22 N
Permissible Overhung Load (8mm) 26 N
Permissible Overhung Load (13mm) 33 N
Permissible Overhung Load (18mm) 46 N
Permissible Thrust Load Lower than motor weight
Insulation Resistance 100 Min (at 500 VDC)
Insulation Class Class B (130 °C)
Operating Temperature 0 °C to 55 °C


Model 20M 20L 28S 28M 28L 35M 35L 42S 42M 42L 42XL
Drive Method Bi-Polar
Number of Phases 2
Current per Phase 0.5 A 0.95 A 1.5 A 1.2 A
Holding Torque 0.016 N·m 0.025 N·m 0.069 N·m 0.098 N·m 0.118 N·m 0.13 N·m 0.23 N·m 0.32 N·m 0.44 N·m 0.5 N·m 0.65 N·m
Rotor Inertia 2.5 g·cm² 3.3 g·cm² 9 g·cm² 13 g·cm² 18 g·cm² 15 g·cm² 20 g·cm² 35 g·cm² 54 g·cm² 77 g·cm² 114 g·cm²
Weight 80 g 104 g 147 g 204 g 232 g 194 g 226 g 294 g 357 g 426 g 564 g
Length 28 mm 38 mm 32 mm 45 mm 50 mm 32 mm 36 mm 34 mm 40 mm 48 mm 60 mm
Permissible Overhung Load (3mm) 18 N 30 N 22 N 22 N
Permissible Overhung Load (8mm) 30 N 38 N 26 N 26 N
Permissible Overhung Load (13mm) - 53 N 33 N 33 N
Permissible Overhung Load (18mm) - - 46 N 46 N
Permissible Thrust Load Lower than motor weight
Insulation Resistance 100 Min (at 500 VDC)
Insulation Class Class B (130 °C)
Operating Temperature 0 °C to 55 °C
