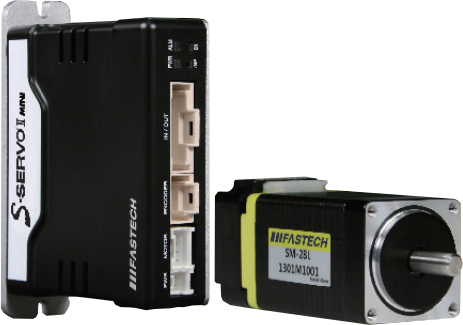

Impuls Schrittmotorsystem
Keine Schrittfehler
Durch den eingebauten Encoder, der ständig die aktuelle Position überwacht, kann es nicht zu einem Ausfall kommen. Wenn ein Schrittfehler durch eine externe Kraft oder Überlast auftritt, wird ein Alarmsignal an die obere Steuerung gesendet. Auf diese Weise kann die obere Steuerung den Schrittfehler des Schrittmotors erkennen.
S-SERVO II
Product Name
MI
Drive Series
42
Motor Flange Size
20: NEMA 828: NEMA 11
35: NEMA 14
42: NEMA 17
S
Motor Length
S: SmallM: Medium
L: Large
XL: Extra Large
A
Encoder Resolution
A: 10.000 pprD: 16.000 ppr
F: 4.000 ppr
Produkte
Produkt
Lieferzeit
Einzelpreis
inkl. MwSt
inkl. MwSt
S-SERVO II-MI-20L-F / NEMA 8 / large / 4,000ppr
Bis zu 2 Wochen
€295,12 EUR
S-SERVO II-MI-20M-F / NEMA 8 / medium / 4,000ppr
Bis zu 2 Wochen
€295,12 EUR
S-SERVO II-MI-28L-D / NEMA 11 / large / 16,000ppr
Bis zu 2 Wochen
€292,74 EUR
S-SERVO II-MI-28L-F / NEMA 11 / large / 4,000ppr
Bis zu 2 Wochen
€292,74 EUR
S-SERVO II-MI-28M-D / NEMA 11 / medium / 16,000ppr
Bis zu 2 Wochen
€290,36 EUR
S-SERVO II-MI-28M-F / NEMA 11 / medium / 4,000ppr
Bis zu 2 Wochen
€290,36 EUR
S-SERVO II-MI-28S-D / NEMA 11 / small / 16,000ppr
Bis zu 2 Wochen
€290,36 EUR
S-SERVO II-MI-28S-F / NEMA 11 / small / 4,000ppr
Bis zu 2 Wochen
€290,36 EUR
S-SERVO II-MI-35L-D / NEMA 14 / large / 16,000ppr
Bis zu 2 Wochen
€283,22 EUR
S-SERVO II-MI-35L-F / NEMA 14 / large / 4,000ppr
Bis zu 2 Wochen
€283,22 EUR
S-SERVO II-MI-35M-D / NEMA 14 / medium / 16,000ppr
Bis zu 2 Wochen
€280,84 EUR
S-SERVO II-MI-35M-F / NEMA 14 / medium / 4,000ppr
Bis zu 2 Wochen
€280,84 EUR
S-SERVO II-MI-42L-A / NEMA 17 / large / 10,000ppr
Bis zu 2 Wochen
€287,98 EUR
S-SERVO II-MI-42L-F / NEMA 17 / large / 4,000ppr
Bis zu 2 Wochen
€287,98 EUR
S-SERVO II-MI-42M-A / NEMA 17 / medium / 10,000ppr
Bis zu 2 Wochen
€285,60 EUR
S-SERVO II-MI-42M-F / NEMA 17 / medium / 4,000ppr
Bis zu 2 Wochen
€285,60 EUR
Motorspezifikation
Einklappbarer Inhalt
S-SERVO II MI 20 series
| Model | 20M | 20L |
|---|---|---|
| Drive Method | Bi-Polar | |
| Number of Phases | 2 | |
| Current per Phase | 0.6 A | |
| Holding Torque | 0.018 N·m | 0.037 N·m |
| Rotor Inertia | 3 g·cm² | 3.3 g·cm² |
| Weight | 92 g | 105 g |
| Length | 33 mm | 38 mm |
| Permissible Overhung Load (3mm) | 18 N | |
| Permissible Overhung Load (8mm) | 30 N | |
| Permissible Overhung Load (13mm) | - | |
| Permissible Overhung Load (18mm) | - | |
| Permissible Thrust Load | Lower than motor weight | |
| Insulation Resistance | 100 Min (at 500 VDC) | |
| Insulation Class | Class B (130 °C) | |
| Operating Temperature | 0 °C to 55 °C | |
S-SERVO II MI 28 series
| Model | 28S | 28M | 28L |
|---|---|---|---|
| Drive Method | Bi-Polar | ||
| Number of Phases | 2 | ||
| Current per Phase | 0.67 A | ||
| Holding Torque | 0.069 N·m | 0.098 N·m | 0.118 N·m |
| Rotor Inertia | 9 g·cm² | 13 g·cm² | 18 g·cm² |
| Weight | 146 g | 203 g | 227 g |
| Length | 32 mm | 45 mm | 50 mm |
| Permissible Overhung Load (3mm) | 30 N | ||
| Permissible Overhung Load (8mm) | 38 N | ||
| Permissible Overhung Load (13mm) | 53 N | ||
| Permissible Overhung Load (18mm) | - | ||
| Permissible Thrust Load | Lower than motor weight | ||
| Insulation Resistance | 100 Min (at 500 VDC) | ||
| Insulation Class | Class B (130 °C) | ||
| Operating Temperature | 0 °C to 55 °C | ||
S-SERVO II MI 35 series
| Model | 35M | 35L |
|---|---|---|
| Drive Method | Bi-Polar | |
| Number of Phases | 2 | |
| Current per Phase | 0.8 A | 1.0 A |
| Holding Torque | 0.078 N·m | 0.137 N·m |
| Rotor Inertia | 10 g·cm² | 14 g·cm² |
| Weight | 152 g | 210 g |
| Length | 26 mm | 36 mm |
| Permissible Overhung Load (3mm) | 22 N | |
| Permissible Overhung Load (8mm) | 26 N | |
| Permissible Overhung Load (13mm) | 33 N | |
| Permissible Overhung Load (18mm) | 46 N | |
| Permissible Thrust Load | Lower than motor weight | |
| Insulation Resistance | 100 Min (at 500 VDC) | |
| Insulation Class | Class B (130 °C) | |
| Operating Temperature | 0 °C to 55 °C | |
S-SERVO II MI 42 series
| Model | 42S | 42M | 42L | 42XL |
|---|---|---|---|---|
| Drive Method | Bi-Polar | |||
| Number of Phases | 2 | |||
| Current per Phase | 1.3 A | 1.68 A | 1.2 A | |
| Holding Torque | 0.216 N·m | 0.353 N·m | 0.431 N·m | 0.65 N·m |
| Rotor Inertia | 35 g·cm² | 54 g·cm² | 68 g·cm² | 114 g·cm² |
| Weight | 278 g | 341 g | 416 g | 566 g |
| Length | 33 mm | 39 mm | 47 mm | 60 mm |
| Permissible Overhung Load (3mm) | 22 N | |||
| Permissible Overhung Load (8mm) | 26 N | |||
| Permissible Overhung Load (13mm) | 33 N | |||
| Permissible Overhung Load (18mm) | 46 N | |||
| Permissible Thrust Load | Lower than motor weight | |||
| Insulation Resistance | 100 Min (at 500 VDC) | |||
| Insulation Class | Class B (130 °C) | |||
| Operating Temperature | 0 °C to 55 °C | |||
| Model | 20M | 20L | 28S | 28M | 28L | 35M | 35L | 42S | 42M | 42L | 42XL |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Drive Method | Bi-Polar | ||||||||||
| Number of Phases | 2 | ||||||||||
| Current per Phase | 0.6 A | 0.67 A | 0.8 A | 1 A | 1.3 A | 1.68 A | 1.2 A | ||||
| Holding Torque | 0.018 N·m | 0.037 N·m | 0.069 N·m | 0.098 N·m | 0.118 N·m | 0.078 N·m | 0.137 N·m | 0.216 N·m | 0.353 N·m | 0.431 N·m | 0.65 N·m |
| Rotor Inertia | 3 g·cm² | 3.3 g·cm² | 9 g·cm² | 13 g·cm² | 18 g·cm² | 10 g·cm² | 14 g·cm² | 35 g·cm² | 54 g·cm² | 68 g·cm² | 114 g·cm² |
| Weight | 92 g | 105 g | 146 g | 203 g | 227 g | 152 g | 210 g | 278 g | 341 g | 416 g | 566 g |
| Length | 33 mm | 38 mm | 32 mm | 45 mm | 50 mm | 26 mm | 36 mm | 33 mm | 39 mm | 47 mm | 60 mm |
| Permissible Overhung Load (3mm) | 18 N | 30 N | 22 N | 22 N | |||||||
| Permissible Overhung Load (8mm) | 30 N | 38 N | 26 N | 26 N | |||||||
| Permissible Overhung Load (13mm) | - | 53 N | 33 N | 33 N | |||||||
| Permissible Overhung Load (18mm) | - | - | 46 N | 46 N | |||||||
| Permissible Thrust Load | Lower than motor weight | ||||||||||
| Insulation Resistance | 100 Min (at 500 VDC) | ||||||||||
| Insulation Class | Class B (130 °C) | ||||||||||
| Operating Temperature | 0 °C to 55 °C | ||||||||||
Systemkonfiguration
-
S-SERVO II ST
-
