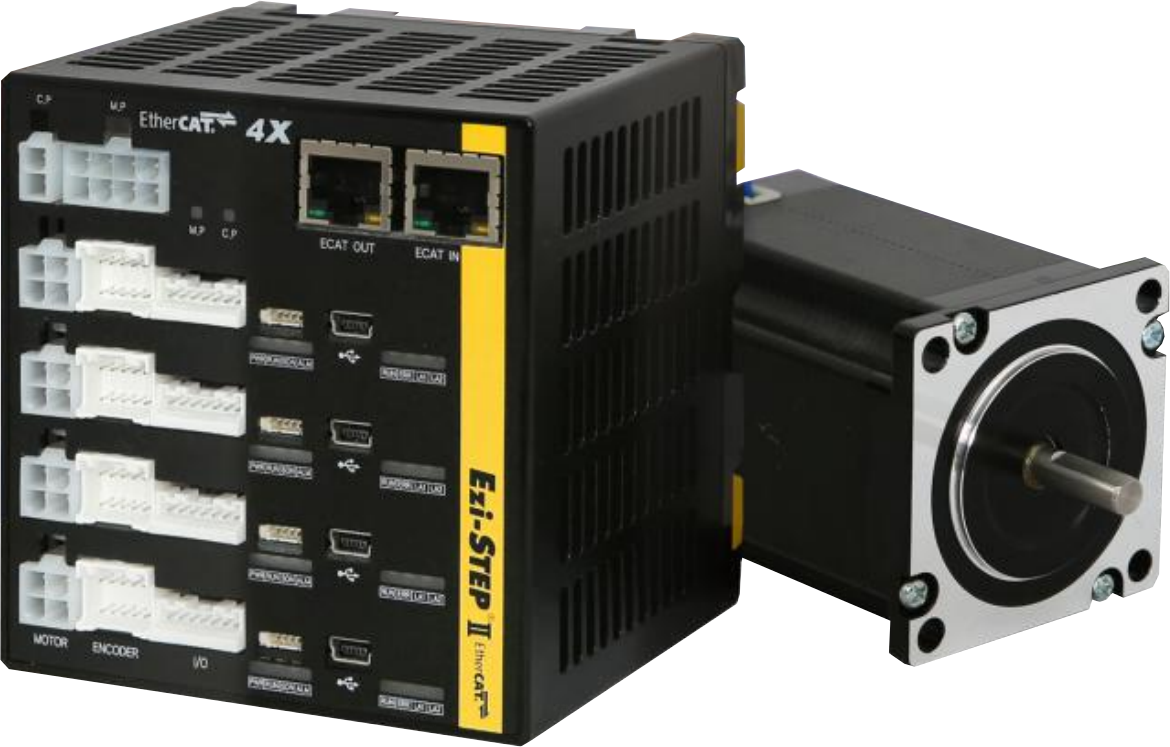

Ezi-STEP II EtherCAT 3X/4X

EtherCAT Schrittmotorsystem

Bis zu 4 Schrittmotoren + Encoder und Controller

Open-Loop Schrittmotorsystem

Schrittauflösungen von 1,8° bis zu 0,0072°

Softwaregesteuerte Vibrationsunterdrückung

CiA402 Profile Support

Produkte
Motorspezifikation
Systemkonfiguration
Download
EzT2
Produktname
-
EC
Drive Series
-
4X
Anzahl Motoren 3X: 4 Motoren
4X: 3 Motoren

Produkte

Produkt
Lieferzeit
Einzelpreis
inkl. MwSt


EzT2-EC-4X
Bis zu 2 Wochen
€1.135,26 EUR
EzT2-EC-3X
Bis zu 2 Wochen
€971,04 EUR
BM-60S / NEMA 24 / small
Bis zu 2 Wochen
€95,20 EUR
BM-60M / NEMA 24 / medium
Bis zu 2 Wochen
€116,62 EUR
BM-60L / NEMA 24 / large
Bis zu 2 Wochen
€138,04 EUR
BM-56S / NEMA 23 / small
Bis zu 2 Wochen
€76,16 EUR
BM-56M / NEMA 23 / medium
Bis zu 2 Wochen
€78,54 EUR
BM-56L / NEMA 23 / large
Bis zu 2 Wochen
€92,82 EUR
BM-42XL / NEMA 17 / extra large
Bis zu 2 Wochen
€66,64 EUR
BM-42S / NEMA 17 / small
Bis zu 2 Wochen
€59,50 EUR
BM-42M / NEMA 17 / medium
Bis zu 2 Wochen
€61,88 EUR
BM-42L / NEMA 17 / large
Bis zu 2 Wochen
€66,64 EUR
BM-28S / NEMA 11 / small
Bis zu 2 Wochen
€83,30 EUR
BM-28M / NEMA 11 / medium
Bis zu 2 Wochen
€88,06 EUR
BM-28L / NEMA 11 / large
Bis zu 2 Wochen
€95,20 EUR
BM-20M / NEMA 8 / medium
Bis zu 2 Wochen
€78,54 EUR

Motorspezifikation

Ezi-STEP II EC-4X 20 series

Model 20M 20L
Drive Method Bi-Polar
Number of Phases 2
Current per Phase 0.5 A
Holding Torque 0.016 N·m 0.025 N·m
Rotor Inertia 2.5 g·cm² 3.3 g·cm²
Weight 53 g 78 g
Length 28 mm 38 mm
Permissible Overhung Load (3mm) 18 N
Permissible Overhung Load (8mm) 30 N
Permissible Overhung Load (13mm) -
Permissible Overhung Load (18mm) -
Permissible Thrust Load Lower than motor weight
Insulation Resistance 100 Min (at 500 VDC)
Insulation Class Class B (130 °C)
Operating Temperature 0 °C to 55 °C


Ezi-STEP II EC-4X 28 series

Model 28S 28M 28L
Drive Method Bi-Polar
Number of Phases 2
Current per Phase 0.95 A
Holding Torque 0.069 N·m 0.098 N·m 0.118 N·m
Rotor Inertia 9 g·cm² 13 g·cm² 18 g·cm²
Weight 115 g 174 g 202 g
Length 32 mm 45 mm 50 mm
Permissible Overhung Load (3mm) 30 N
Permissible Overhung Load (8mm) 38 N
Permissible Overhung Load (13mm) 53 N
Permissible Overhung Load (18mm) -
Permissible Thrust Load Lower than motor weight
Insulation Resistance 100 Min (at 500 VDC)
Insulation Class Class B (130 °C)
Operating Temperature 0 °C to 55 °C


Ezi-STEP II EC-4X 42 series

Model 42S 42M 42L 42XL
Drive Method Bi-Polar
Number of Phases 2
Current per Phase 1.2 A
Holding Torque 0.32 N·m 0.44 N·m 0.5 N·m 0.65 N·m
Rotor Inertia 35 g·cm² 54 g·cm² 77 g·cm² 114 g·cm²
Weight 238 g 303 g 374 g 508 g
Length 34 mm 40 mm 48 mm 60 mm
Permissible Overhung Load (3mm) 22 N
Permissible Overhung Load (8mm) 26 N
Permissible Overhung Load (13mm) 33 N
Permissible Overhung Load (18mm) 46 N
Permissible Thrust Load Lower than motor weight
Insulation Resistance 100 Min (at 500 VDC)
Insulation Class Class B (130 °C)
Operating Temperature 0 °C to 55 °C


Ezi-STEP II EC-4X 56 series

Model 56S 56M 56L
Drive Method Bi-Polar
Number of Phases 2
Current per Phase 3.0 A
Holding Torque 0.64 N·m 1.0 N·m 1.5 N·m
Rotor Inertia 180 g·cm² 280 g·cm² 520 g·cm²
Weight 608 g 784 g 1230 g
Length 46 mm 55 mm 80 mm
Permissible Overhung Load (3mm) 52 N
Permissible Overhung Load (8mm) 65 N
Permissible Overhung Load (13mm) 85 N
Permissible Overhung Load (18mm) 123 N
Permissible Thrust Load Lower than motor weight
Insulation Resistance 100 Min (at 500 VDC)
Insulation Class Class B (130 °C)
Operating Temperature 0 °C to 55 °C


Ezi-STEP II EC-4X 60 series

Model 60S 60M 60L
Drive Method Bi-Polar
Number of Phases 2
Current per Phase 4.0 A
Holding Torque 0.88 N·m 1.28 N·m 2.4 N·m
Rotor Inertia 240 g·cm² 490 g·cm² 690 g·cm²
Weight 693 g 856 g 1419 g
Length 47 mm 56 mm 85 mm
Permissible Overhung Load (3mm) 70 N
Permissible Overhung Load (8mm) 87 N
Permissible Overhung Load (13mm) 114 N
Permissible Overhung Load (18mm) 165 N
Permissible Thrust Load Lower than motor weight
Insulation Resistance 100 Min (at 500 VDC)
Insulation Class Class B (130 °C)
Operating Temperature 0 °C to 55 °C


Model 20M 20L 28S 28M 28L 42S 42M 42L 42XL
Drive Method Bi-Polar
Number of Phases 2
Current per Phase 0.5 A 0.95 A 1.2 A
Holding Torque 0.016 N·m 0.025 N·m 0.069 N·m 0.098 N·m 0.118 N·m 0.32 N·m 0.44 N·m 0.5 N·m 0.65 N·m
Rotor Inertia 2.5 g·cm² 3.3 g·cm² 9 g·cm² 13 g·cm² 18 g·cm² 35 g·cm² 54 g·cm² 77 g·cm² 114 g·cm²
Weight 53 g 78 g 115 g 174 g 202 g 238 g 303 g 374 g 508 g
Length 28 mm 38 mm 32 mm 45 mm 50 mm 34 mm 40 mm 48 mm 60 mm
Permissible Overhung Load (3mm) 18 N 30 N 22 N
Permissible Overhung Load (8mm) 30 N 38 N 26 N
Permissible Overhung Load (13mm) - 53 N 33 N
Permissible Overhung Load (18mm) - - 46 N
Permissible Thrust Load Lower than motor weight
Insulation Resistance 100 Min (at 500 VDC)
Insulation Class Class B (130 °C)
Operating Temperature 0 °C to 55 °C
Model 56S 56M 56L 60S 60M 60L
Drive Method Bi-Polar
Number of Phases 2
Current per Phase 3.0 A 4.0 A
Holding Torque 0.64 N·m 1.0 N·m 1.5 N·m 0.88 N·m 1.28 N·m 2.4 N·m
Rotor Inertia 180 g·cm² 280 g·cm² 520 g·cm² 240 g·cm² 490 g·cm² 690 g·cm²
Weight 608 g 784 g 1230 g 693 g 856 g 1419 g
Length 46 mm 55 mm 80 mm 47 mm 56 mm 85 mm
Permissible Overhung Load (3mm) 52 N 70 N
Permissible Overhung Load (8mm) 65 N 87 N
Permissible Overhung Load (13mm) 85 N 114 N
Permissible Overhung Load (18mm) 123 N 165 N
Permissible Thrust Load Lower than motor weight
Insulation Resistance 100 Min (at 500 VDC)
Insulation Class Class B (130 °C)
Operating Temperature 0 °C to 55 °C

Systemkonfiguration

  • Ezi-STEP II EtherCAT 4X

Download

  • Katalog

    Enthält alle technischen Informationen und Spezifikationen für den Ezi-STEP II EtherCAT 4X

    Download

  • Manual

    User Manual

    Download
