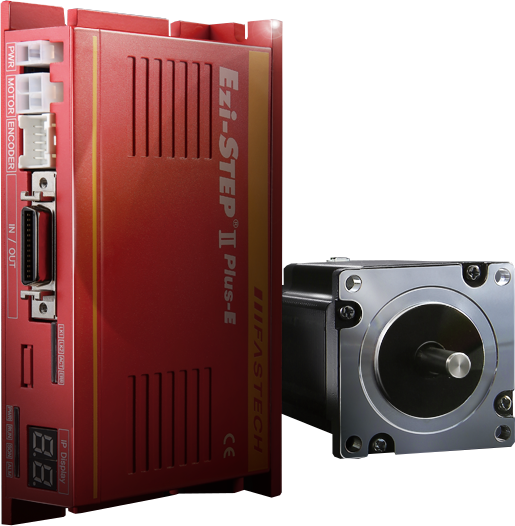

Ezi-STEP II Plus-E

Ethernet Schrittmotorsystem

Schrittmotor und Controller

Open-Loop Schrittmotorsystem

Schrittauflösungen von 1,8° bis zu 0,0072°

Daisy Chain bis zu 254 Motoren

Position Table can be used for motion control by digital input and output signals of host controller. You can operate the motor directly by sending the position table number, start/stop, origin search and other digital input values from a PC.

The PC can monitor the In-Position, origin search, moving/stop, servo ready and other digital output signals from a drive. A maximum of 256 positioning points can be set from PC.

Positionstabellen für bis zu 256 Anweisungen

Softwaregesteuerte Vibrationsunterdrückung

Produkte
Motorspezifikation
Systemkonfiguration
Download
Ezi-STEP II
Product Name
-
PE
Drive Series
-
42
Motor Flange Size 20: NEMA 8
28: NEMA 11
42: NEMA 17
56: NEMA 23
60: NEMA 24
86: NEMA 34
S
Motor Length S: Small
M: Medium
L: Large
XL: Extra Large

Produkte

Produkt
Lieferzeit
Einzelpreis
inkl. MwSt


Ezi-STEP II-PE-20L / NEMA 8 / large
Bis zu 2 Wochen
€373,66 EUR
Ezi-STEP II-PE-20M / NEMA 8 / medium
Bis zu 2 Wochen
€368,90 EUR
Ezi-STEP II-PE-28L / NEMA 11 / large
Bis zu 2 Wochen
€383,18 EUR
Ezi-STEP II-PE-28M / NEMA 11 / medium
Bis zu 2 Wochen
€376,04 EUR
Ezi-STEP II-PE-28S / NEMA 11 / small
Bis zu 2 Wochen
€371,28 EUR
Ezi-STEP II-PE-42L / NEMA 17 / large
Bis zu 2 Wochen
€357,00 EUR
Ezi-STEP II-PE-42M / NEMA 17 / medium
Bis zu 2 Wochen
€352,24 EUR
Ezi-STEP II-PE-42S / NEMA 17 / small
Bis zu 2 Wochen
€349,86 EUR
Ezi-STEP II-PE-42XL / NEMA 17 / extra large
Bis zu 2 Wochen
€357,00 EUR
Ezi-STEP II-PE-56L / NEMA 23 / large
Bis zu 2 Wochen
€380,80 EUR
Ezi-STEP II-PE-56M / NEMA 23 / medium
Bis zu 2 Wochen
€368,90 EUR
Ezi-STEP II-PE-56S / NEMA 23 / small
Bis zu 2 Wochen
€366,52 EUR
Ezi-STEP II-PE-60L / NEMA 24 / large
Bis zu 2 Wochen
€454,58 EUR
Ezi-STEP II-PE-60M / NEMA 24 / medium
Bis zu 2 Wochen
€435,54 EUR
Ezi-STEP II-PE-60S / NEMA 24 / small
Bis zu 2 Wochen
€416,50 EUR
Ezi-STEP II-PE-86L / NEMA 34 / large
Bis zu 2 Wochen
€642,60 EUR

Motorspezifikation

Ezi-STEP II PE 20 series

Model 20M 20L
Drive Method Bi-Polar
Number of Phases 2
Current per Phase 0.5 A
Holding Torque 0.016 N·m 0.025 N·m
Rotor Inertia 2.5 g·cm²
Weight 53 g 78 g
Length 28 mm 38 mm
Permissible Overhung Load (3mm) 18 N
Permissible Overhung Load (8mm) 30 N
Permissible Overhung Load (13mm) -
Permissible Overhung Load (18mm) -
Permissible Thrust Load Lower than motor weight
Insulation Resistance 100 Min (at 500 VDC)
Insulation Class Class B (130 °C)
Operating Temperature 0 °C to 55 °C


Ezi-STEP II PE 28 series

Model 28S 28M 28L
Drive Method Bi-Polar
Number of Phases 2
Current per Phase 0.95 A
Holding Torque 0.069 N·m 0.098 N·m 0.118 N·m
Rotor Inertia 9 g·cm² 13 g·cm² 18 g·cm²
Weight 115 g 174 g 202 g
Length 32 mm 45 mm 50 mm
Permissible Overhung Load (3mm) 30 N
Permissible Overhung Load (8mm) 38 N
Permissible Overhung Load (13mm) 53 N
Permissible Overhung Load (18mm) -
Permissible Thrust Load Lower than motor weight
Insulation Resistance 100 Min (at 500 VDC)
Insulation Class Class B (130 °C)
Operating Temperature 0 °C to 55 °C


Ezi-STEP II PE 42 series

Model 42S 42M 42L 42XL
Drive Method Bi-Polar
Number of Phases 2
Current per Phase 1.2 A
Holding Torque 0.32 N·m 0.44 N·m 0.5 N·m 0.65 N·m
Rotor Inertia 35 g·cm² 54 g·cm² 77 g·cm² 114 g·cm²
Weight 238 g 303 g 374 g 508 g
Length 34 mm 40 mm 48 mm 60 mm
Permissible Overhung Load (3mm) 22 N
Permissible Overhung Load (8mm) 26 N
Permissible Overhung Load (13mm) 33 N
Permissible Overhung Load (18mm) 46 N
Permissible Thrust Load Lower than motor weight
Insulation Resistance 100 Min (at 500 VDC)
Insulation Class Class B (130 °C)
Operating Temperature 0 °C to 55 °C


Ezi-STEP II PE 56 series

Model 56S 56M 56L
Drive Method Bi-Polar
Number of Phases 2
Current per Phase 3.0 A
Holding Torque 0.64 N·m 1.0 N·m 1.5 N·m
Rotor Inertia 180 g·cm² 280 g·cm² 520 g·cm²
Weight 548 g 726 g 1159 g
Length 46 mm 55 mm 80 mm
Permissible Overhung Load (3mm) 52 N
Permissible Overhung Load (8mm) 65 N
Permissible Overhung Load (13mm) 85 N
Permissible Overhung Load (18mm) 123 N
Permissible Thrust Load Lower than motor weight
Insulation Resistance 100 Min (at 500 VDC)
Insulation Class Class B (130 °C)
Operating Temperature 0 °C to 55 °C


Ezi-STEP II PE 60 series

Model 60S 60M 60L
Drive Method Bi-Polar
Number of Phases 2
Current per Phase 4.0 A
Holding Torque 0.88 N·m 1.28 N·m 2.4 N·m
Rotor Inertia 240 g·cm² 490 g·cm² 690 g·cm²
Weight 616 g 793 g 1349 g
Length 47 mm 56 mm 85 mm
Permissible Overhung Load (3mm) 70 N
Permissible Overhung Load (8mm) 87 N
Permissible Overhung Load (13mm) 114 N
Permissible Overhung Load (18mm) 165 N
Permissible Thrust Load Lower than motor weight
Insulation Resistance 100 Min (at 500 VDC)
Insulation Class Class B (130 °C)
Operating Temperature 0 °C to 55 °C


Ezi-STEP II PE 86 series

Model 86M 86L 86XL
Drive Method Bi-Polar
Number of Phases 2
Current per Phase 6.0 A
Holding Torque 4.5 N·m 8.5 N·m 12 N·m
Rotor Inertia 1800 g·cm² 3600 g·cm² 5400 g·cm²
Weight 2275 g 3808 g 5330 g
Length 78 mm 117 mm 155 mm
Permissible Overhung Load (3mm) 270 N
Permissible Overhung Load (8mm) 300 N
Permissible Overhung Load (13mm) 350 N
Permissible Overhung Load (18mm) 400 N
Permissible Thrust Load Lower than motor weight
Insulation Resistance 100 Min (at 500 VDC)
Insulation Class Class B (130 °C)
Operating Temperature 0 °C to 55 °C


Model 20M 20L 28S 28M 28L 42S 42M 42L 42XL
Drive Method Bi-Polar
Number of Phases 2
Current per Phase 0.5 A 0.95 A 1.2 A
Holding Torque 0.016 N·m 0.025 N·m 0.069 N·m 0.098 N·m 0.118 N·m 0.32 N·m 0.44 N·m 0.5 N·m 0.65 N·m
Rotor Inertia 2.5 g·cm² 3.3 g·cm² 9 g·cm² 13 g·cm² 18 g·cm² 35 g·cm² 54 g·cm² 77 g·cm² 114 g·cm²
Weight 53 g 78 g 115 g 174 g 202 g 238 g 303 g 374 g 508 g
Length 28 mm 38 mm 32 mm 45 mm 50 mm 34 mm 40 mm 48 mm 60 mm
Permissible Overhung Load (3mm) 18 N 30 N 22 N
Permissible Overhung Load (8mm) 30 N 38 N 26 N
Permissible Overhung Load (13mm) - 53 N 33 N
Permissible Overhung Load (18mm) - - 46 N
Permissible Thrust Load Lower than motor weight
Insulation Resistance 100 Min (at 500 VDC)
Insulation Class Class B (130 °C)
Operating Temperature 0 °C to 55 °C
Model 56S 56M 56L 60S 60M 60L 86M 86L 86XL
Drive Method Bi-Polar
Number of Phases 2
Current per Phase 3.0 A 4.0 A 6.0 A
Holding Torque 0.64 N·m 1.0 N·m 1.5 N·m 0.88 N·m 1.28 N·m 2.4 N·m 4.5 N·m 8.5 N·m 12 N·m
Rotor Inertia 180 g·cm² 280 g·cm² 520 g·cm² 240 g·cm² 490 g·cm² 690 g·cm² 1800 g·cm² 3600 g·cm² 5400 g·cm²
Weight 548 g 726 g 1159 g 616 g 793 g 1349 g 2275 g 3808 g 5330 g
Length 46 mm 55 mm 80 mm 47 mm 56 mm 85 mm 78 mm 117 mm 155 mm
Permissible Overhung Load (3mm) 52 N 70 N 270 N
Permissible Overhung Load (8mm) 65 N 87 N 300 N
Permissible Overhung Load (13mm) 85 N 114 N 350 N
Permissible Overhung Load (18mm) 123 N 165 N 400 N
Permissible Thrust Load Lower than motor weight
Insulation Resistance 100 Min (at 500 VDC)
Insulation Class Class B (130 °C)
Operating Temperature 0 °C to 55 °C

Systemkonfiguration

  • Ezi-STEP II Plus-E

  • Ezi-STEP II Plus-E 86mm

Download

  • Katalog

    Enthält alle technischen Informationen und Spezifikationen für den Ezi-STEP II Plus-E

    Download

  • Manual

    User Manual

    Download

  • Software

    Enthält Software, DLL und Programmierbeispiele

    Download
